English
Description
Rigid clutch disc with sintered metal plates
Manufacturer compare numbers
OPEL
55 351 747
55 351 769
55 559 472
55 565 534
664 008
664 042
664 094
664 103
664 110
664 113
664 151
664 161
664 165
664 173
664 194
664 206
664 212
664 215
664 220
664 232
664 234
664 240
664 242
664 244
664 258
664 301
664 307
664 318
664 321
664 334
664 342
90 223 445
90 223 446
90 250 294
90 272 152
90 278 186
90 278 187
90 305 447
90 305 448
90 399 399
90 446 039
90 446 052
90 465 719
90 465 720
90 465 895
90 465 896
90 470 870
90 470 996
90 486 400
90 486 842
90 522 021
90 522 426
90 522 766
90 522 930
90 523 127
90 523 128
90 523 363
90 523 364
90 523 910
90 523 915
90 523 917
90 540 004
90 540 725
90 540 728
90 540 741
90 540 852
90 540 855
90 541 238
90 541 306
90 541 813
90 543 406
90 578 491
90 578 492
93 174 510
93 187 703
VAUXHALL
R1020080
R90446039
R90465719
664 094
90 465 719
93 187 703
Manufacturer
Product Tags
Designed to make a
difference
ZF Race Engineering's SACHS motorsport clutches have stood for top-tier quality in international racing for decades. The ambition: continuous improvement and the drive to keep pushing the limits. From the lightest clutch used in Formula 1 to proven twin-plate and multi-plate systems in WRC, DTM, NASCAR, Le Mans and the Dakar Rally - ZF Motorsport technology is a core component of many winning cars worldwide.
Clutch Disc

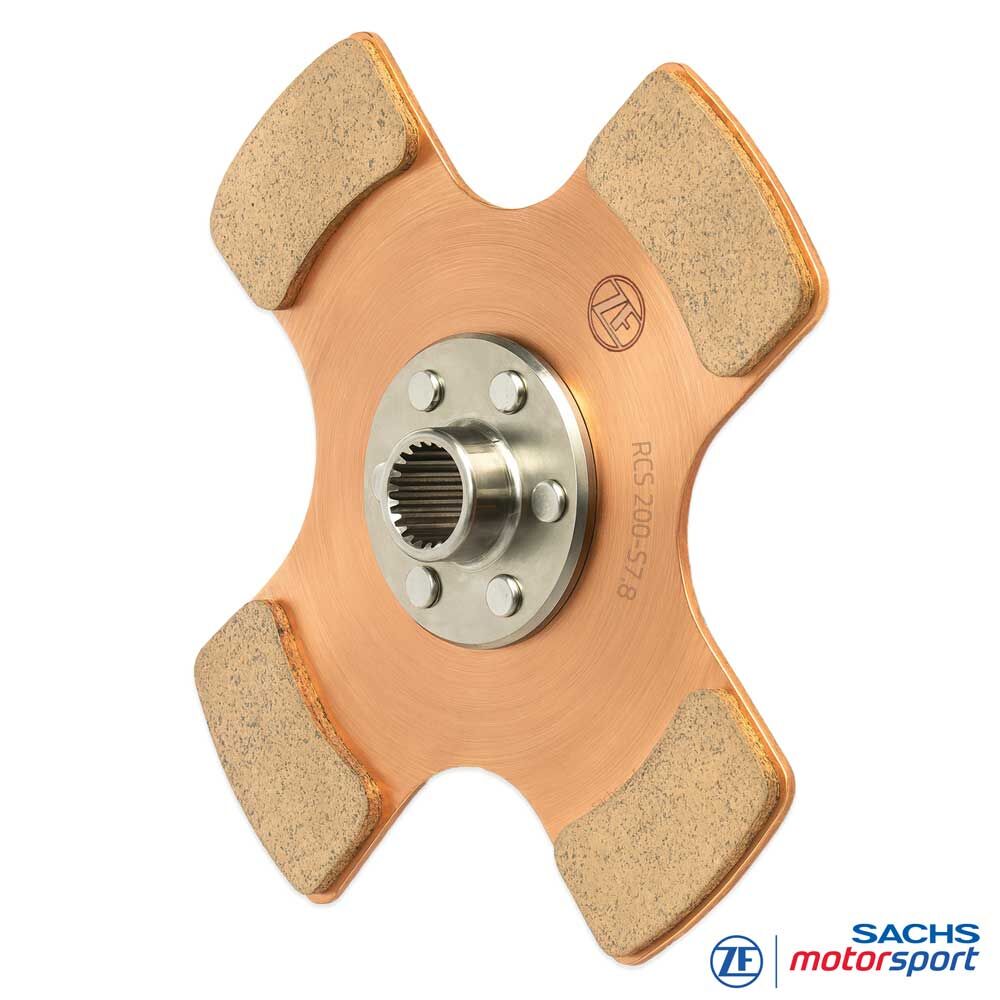

SACHS RCS 200 7.8
Sintered metal 7.8 mm, rigid design
The SACHS RCS 200 7.8 sintered‑pad clutch disc is the robust choice for maximum durability, consistent performance and long service life. Its 200 mm diameter delivers high torque capacity and excellent heat dissipation - ideal for endurance racing, rally and any application with sustained thermal load.
The 7.8 mm lining thickness offers a large wear reserve, clearly more material than 2.6 mm. This increases thermal capacity, smooths temperature spikes and reduces fade and warpage. The result is a stable coefficient of friction, a precise bite point and repeatable engagement even after many race starts and long stints.
Compared with 2.6 mm discs, the 7.8 mm version deliberately sacrifices the last grams of rotating mass in favour of durability and thermal security. If you prioritise a temperature-resistant, hard-wearing solution over pure sprint response, you benefit from longer service intervals and reliable torque transfer under extreme loads.
Individually riveted sintered pads ensure even surface pressure, clean torque transfer and a consistent pedal feel. In total, the RCS 200 7.8 combines the reserves of the larger 200 mm format with the staying power of thick sinter pads - the right choice for racers who must be consistently fast over distance.
Key advantages at a glance:
High transferable torque
High thermal load capacity
Large wear reserve
Highly dirt-resistant
Long service life
The Technology
Friction lining - sintered metal
The SACHS RCS 200 7.8 sintered‑metal clutch disc from ZF Motorsport is built for top performance in competition. Compared with organic discs it offers markedly higher thermal stability, higher rpm capability and strong resistance to dirt and oil.
The dedicated sintered friction material delivers an aggressive launch behaviour with hard bite and instant engagement off the line. At the same time it transfers significantly higher torque, making it ideal for powerful race cars.
As a core component of the modular SACHS RCS 200 system, it is perfectly matched to motorsport use - from rally and autocross to 1/4 mile.
SACHS RCS hub
SACHS RCS 200 7.8 motorsport discs are available with multiple hub spline profiles precisely matched to the respective gearbox input shaft. The result is maximum fit, reliable torque transfer and durability under racing conditions.

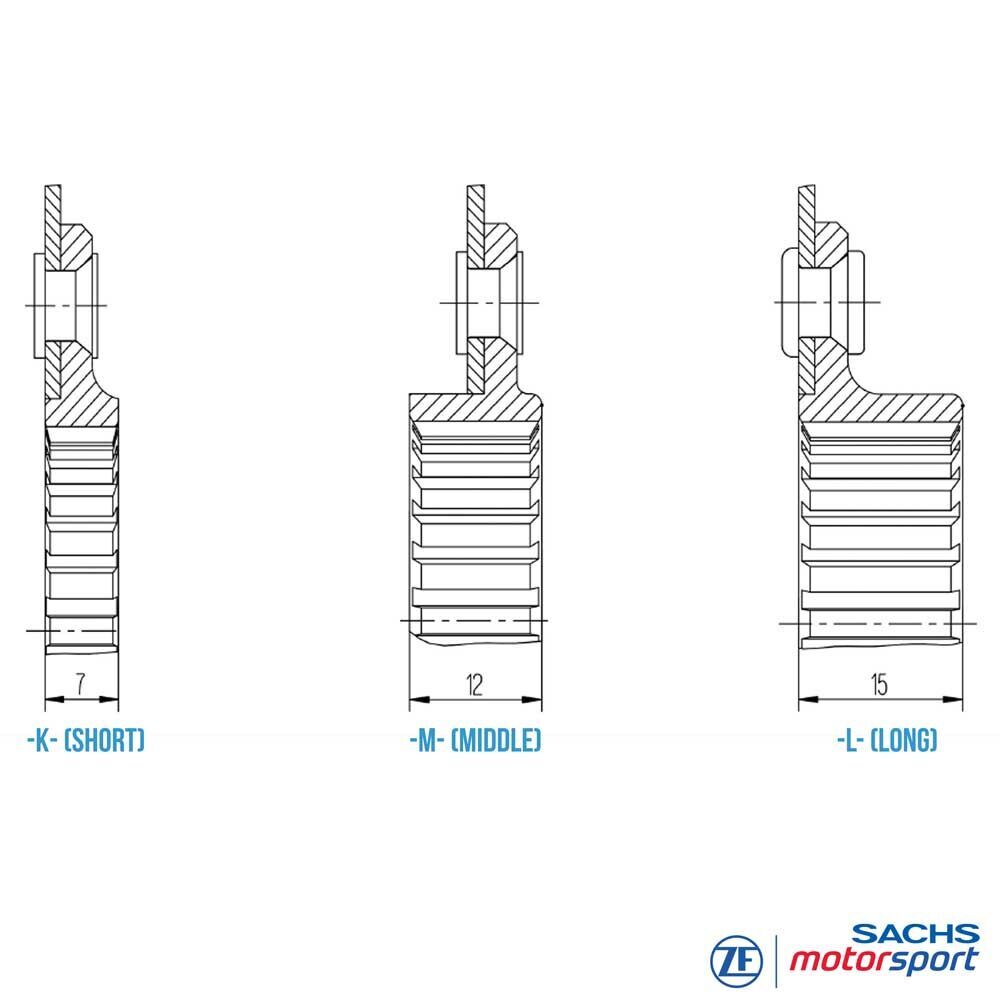

Hubs are offered in several lengths (short, medium, long) to suit the available installation space and ensure correct actuation. The modular RCS 200 concept enables a tailored low‑inertia, high‑performance clutch with outstanding thermal robustness and service life.
Quality Made in Germany
ZF Race Engineering has been among the technology leaders in motorsport for years. The combined know-how from top-level racing flows directly into the development of RCS racing clutches. State-of-the-art manufacturing methods, the highest quality standards and motorsport technologies make ZF Motorsport clutches the first choice for maximum performance and reliability - on circuits as well as in rallying, touring and endurance racing.
Applications
CIRCUIT / TOURING CARS
Super GT, ELMS,
DTM, STCC, NLS, TCR, GT World Challenge etc.
ENDURANCE
24-hour series,
GT World Challenge Europe, WEC, IMSA, Asian Le Mans Series etc.
RALLYCROSS/AUTOCROSS
World RX
European Rallycross Championship, CEAX, SCCA Solo etc.
RALLY
GT2 European Series,
WRC, ELMS, DRM, BRC, FRC etc.
