Designed to make a
difference
SACHS motorsport clutches from ZF Race Engineering have delivered front-running performance in international racing for decades - always pushing development and redefining what is possible. From the lightest Formula 1 racing clutch to proven multi-plate systems in WRC, DTM, NASCAR, Le Mans and the Dakar Rally, ZF Motorsport technology drives championship-winning cars worldwide. At the same time, SACHS has long been an OE supplier of organic clutches to leading car makers - real-world know-how that flows into every racing clutch system.

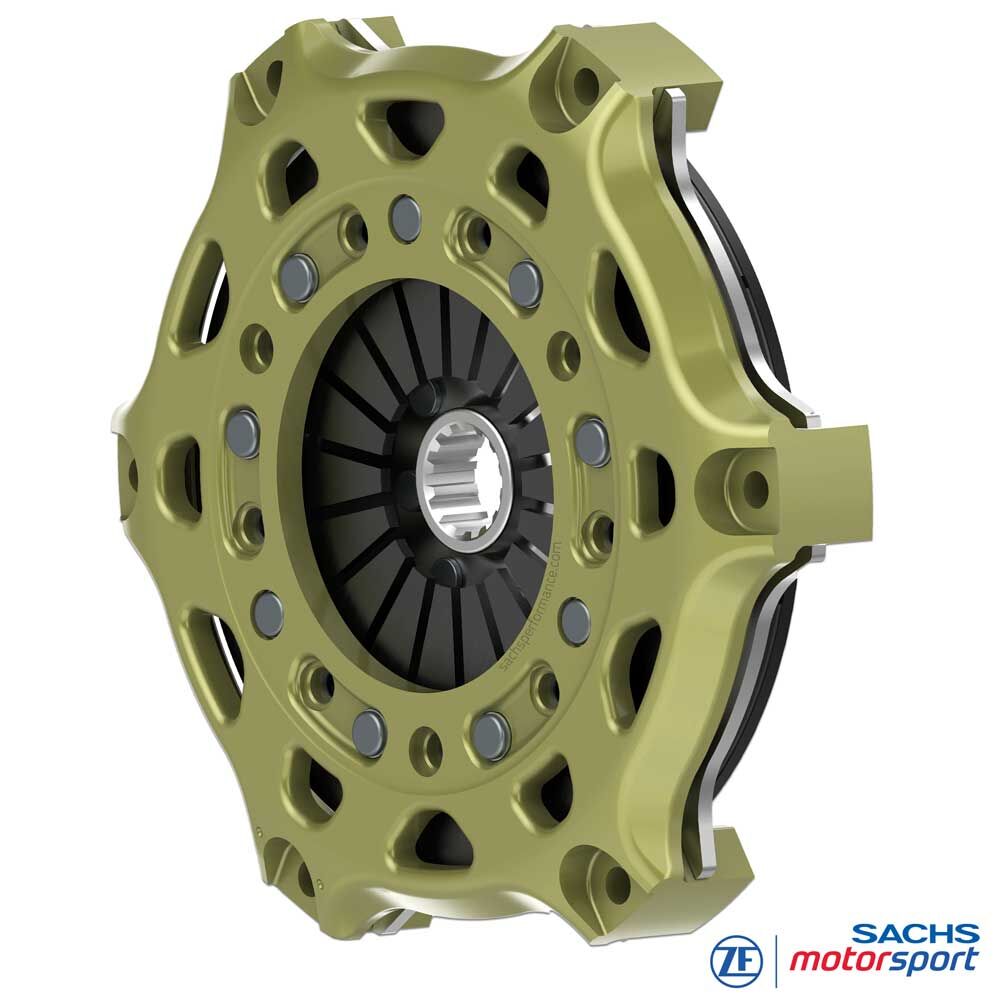

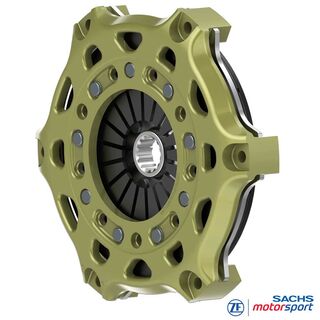

SACHS Racing Clutch
RCS 1/184 O7.8
Organic 7.8 mm, rigid version
The SACHS RCS 1/184 7.8 Organic is a dedicated racing clutch for crisp response and precise, controllable engagement. The organic 7.8 mm friction lining engages smoothly and predictably, reduces driveline shock loads and delivers a calm, repeatable pedal feel – with up to 260 Nm engine torque and a release load of just 2,400 N. Ideal for slalom, historic racing and demanding track day cars with moderate power.
The increased lining thickness provides noticeable wear reserve and keeps the bite point stable across wide temperature and load ranges. The clutch cover (housing) made from high-strength forged aluminium combines low mass with high stiffness and aids efficient heat dissipation - for consistent performance and clean modulation.
The pressure plate is supplied exclusively in high-strength steel. Compared with cast iron, steel withstands mechanical and thermal peaks significantly better and is fully launch-capable - ideal for standing starts, intensive pit stop cycles and repeated full-load use.
Advantages
Easy on the transmission
Soft clutch engagement
Low wear on the flywheel friction surface
Less Mass
One of the greatest strengths of the RCS sintered clutch is its low mass and the associated low mass inertia.
The SACHS RCS clutches have been designed for racing with the objective that torque is transmitted rapidly and directly from the engine to the gearbox.
Reducing the weight of the crankshaft drive to lower the moment of inertia will considerably increase vehicle acceleration performance in the lower gears.
Faster Acceleration
If the clutch itself has a moment of inertia (MoI) of 0.061 kgm2, the MoI on the drive wheel will be 180 times higher (in first gear) for a reduction in transmission of 13.4:1 (13.42). If we convert this value into vehicle mass, we arrive around 145 kg of additional weight to be accelerated in first gear.
As a result of the low moment of inertia of the SACHS RCS clutch, shifting times are considerably reduced and the vehicle accelerates much faster.
The Technology

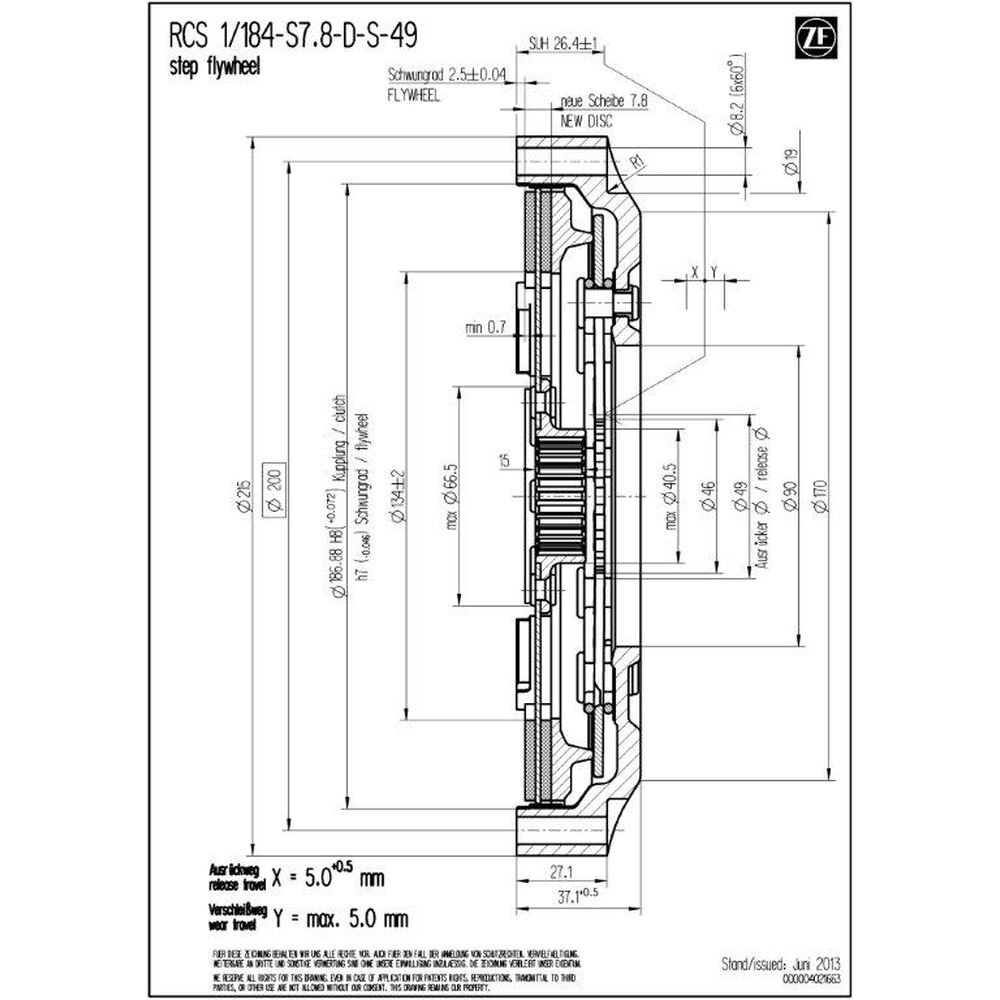

Technical data RCS 1/184:
- Maximum engine torque [Nm] : 260
- Release diameter [mm] : 49
- Release load [N] : 2,400
- Release travel [mm] : 5.0 +0.5
- Mass (weight) [kg] : 2.27
- Moment of inertia [kgm2] : 0.013294
Clutch cover (housing)
The ZF Motorsport SACHS RCS 184 clutch cover is made of high-strength forged aluminium and engineered for maximum stiffness at minimum weight. The specific housing geometry supports efficient heat dissipation and stabilises the clutch pack's temperature window.
A key feature is the extremely wear-resistant, patented aluminium coating. This full-surface hard coating reduces friction and fit wear, protects against corrosion and ensures long service life.
Clutch lining - Organic
Organic friction lining stands for maximum drivability: it builds grip progressively, can be finely modulated and reduces NVH effects (noise/vibration/harshness). The result is a calm, repeatable bite point with precise slip control - ideal for clean launches, traction out of slow corners and consistent lap times.
Thanks to the softer, fibre-reinforced matrix, driveline shock loads are reduced. Gearbox, differential and joints are protected, tyres are stressed less harshly. Within the intended temperature window, the friction level remains stable, wear is evenly distributed, and pedal characteristics stay constant over many cycles - well suited for track days, club sport and endurance where control matters more than maximum launch aggression.
SACHS RCS hub
The ZF Motorsport SACHS RCS 1/184 O7.8 racing clutches are available with different hub profiles precisely matched to the respective gearbox input shaft. This ensures perfect fit, reliable torque transfer and maximum durability in hard competition use.
In addition, hubs are offered in different length variants (short, medium, long). This allows the clutch to be adapted to the available installation space and ensures correct actuation. The modular ZF Motorsport RCS 184 system enables an individually tuned racing clutch with maximum performance, thermal robustness and service life. Standard specification of the RCS 1/184 clutch (unless otherwise stated): hub length long.

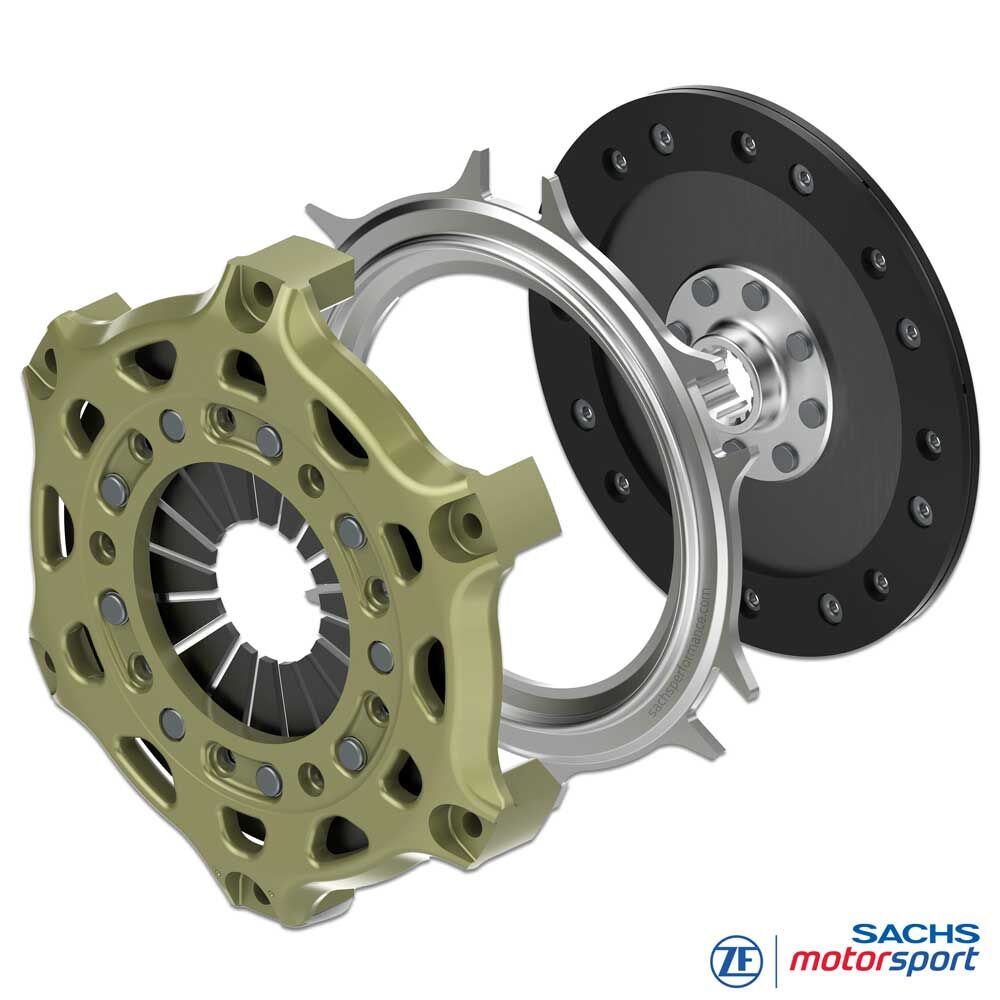

Scope of supply
RCS 184 clutch cover (HA184), aluminium
RCS 184 pressure plate (PP184), steel
RCS 184 clutch disc, Organic 7.8
Hub length: long
Quality Made in Germany
ZF Race Engineering has been among the technology leaders in motorsport for years. The combined know-how from top-level racing flows directly into the development of RCS racing clutches. State-of-the-art manufacturing methods, the highest quality standards and motorsport technologies make ZF Motorsport clutches the first choice for maximum performance and reliability - on circuits as well as in rallying, touring and endurance racing.
Applications
ROAD APPLICATIONS
GLP Nürburgring,
Youngtimer Trophy, CSCC, RCN, Time Attack etc.
HISTORIC
Masters Historic Racing
Goodwood Revival, Mille Miglia, Nürburgring Classic, Silverstone Festival etc.
SLALOM
FIA CEZ Slalom,
ADAC DMSB Slalom, MCS/WPS Slalom, EASC etc.
RALLY
GT2 European Series,
WRC, ELMS, DRM, BRC, FRC etc.
Installation instructions:
As SACHS RCS clutches have not been developed specifically for a vehicle, but are vehicle-independent, the vehicle must be adapted to the clutch (see PDF documents above). The contour of the flywheel, the position, the travel and the shape of the release mechanism as well as the maximum available installation space must be checked and adapted if necessary.
Required information:
When ordering your SACHS RCS clutch, the required profile of the transmission input shaft must be specified. The different profiles offered are listed under „hub profile“. If you have any questions about the product, please do not hesitate to contact us via E-Mail or by telephone on +49 (0)40 / 3999 211.
