Clutch Shim Kit 003074000373
Shim kit for SACHS carbon clutch RCC 3/140 and 4/140
Consistent performance across service intervals: the ZF Motorsport SACHS RCC 140 shim kit 003074000373 compensates carbon clutch-pack wear and restores the original diaphragm-spring kinematics. The torque capacity of the 140 mm carbon racing clutch remains stable with a crisp pedal feel and repeatable clamp load.

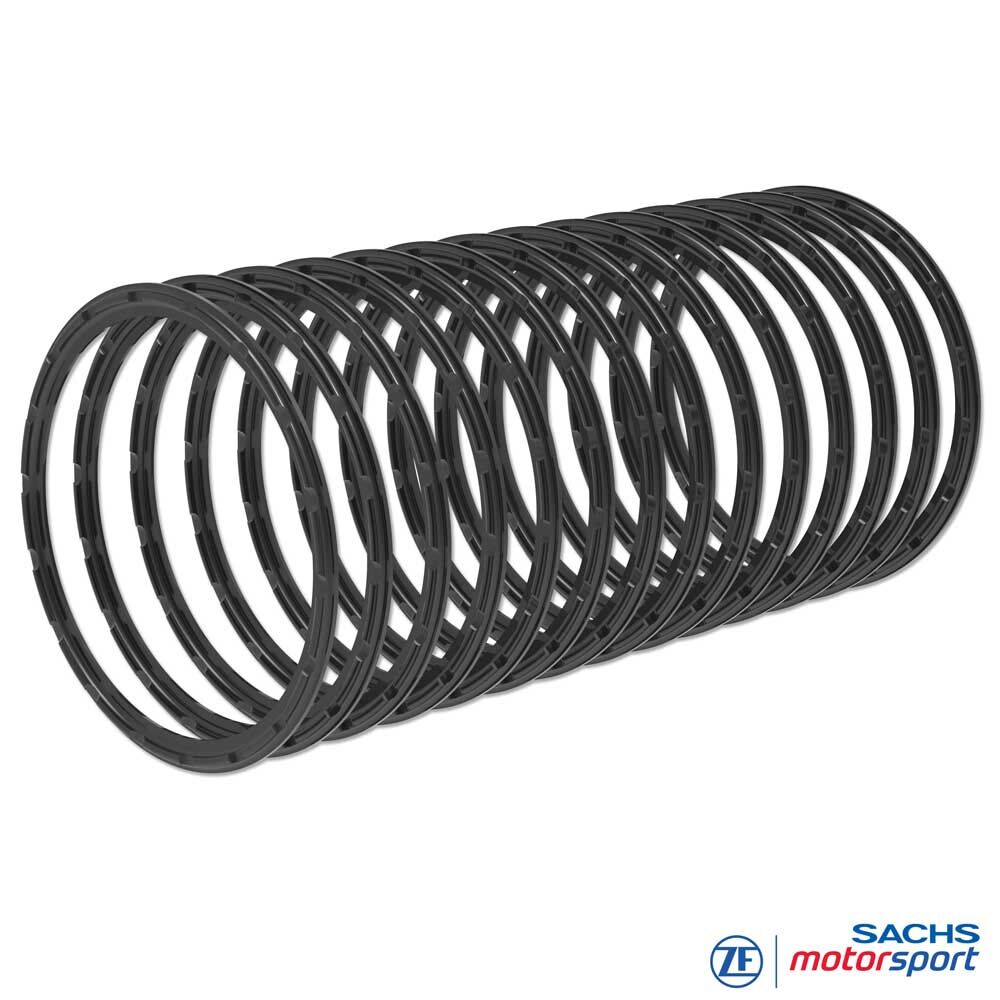

Shim kit contents: 14 pressure rings in fine 0.25 mm steps for precise service setups.
Maximum wear compensation: up to 5.00 mm (via appropriate individual rings; see tables).
Key benefits
Complete kit for maximum wear compensation
Longest carbon stack service life
Stable torque capacity
Fine-step adjustment
Top manufacturing quality
Service-friendly
Technology
Shim kit RCC 140

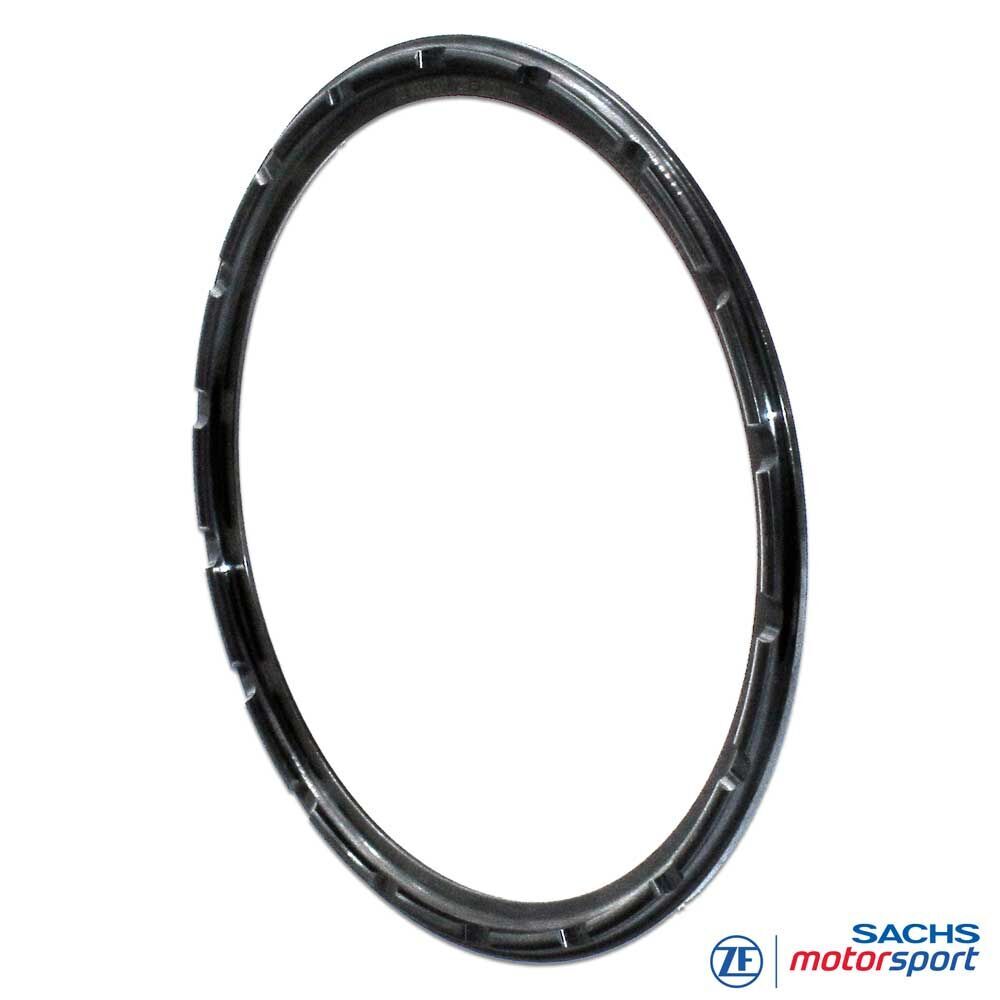

Function: targeted compensation of carbon-stack wear by adjusting the fulcrum/clamp dimension at the clutch base plate. If the permissible wear limit is exceeded, torque capacity drops quickly (slip, heat build-up, excessive release travel). The pressure rings in the shim kit precisely reset installation height and restore the original kinematics.
Steps: 0.25 mm increments for exact restoration of installation height.
Kit: 14 rings; wear compensation up to 5.00 mm (see tables).
Material: high-strength tempered steel, burnished, for increased temperature and load-cycle resistance.
Quality standard: manufactured to ZF Motorsport specification; tight run-out and thickness tolerances.
Practice / installation notes
Measure stack height: determine the carbon pack (friction and intermediate plates) per series spec.
Target/actual check: use the SACHS RCC 140 wear table; the difference defines the required pressure-ring step.
Ring selection: choose the SACHS RCC 140 pressure ring to keep installation height within the nominal range; avoid over-compensation.
Observe the permissible wear limit. If exceeded, replace the carbon pack—ring change alone is not sufficient.
Wear-compensation tables
For RCC 3/140 carbon clutch
| Carbon stack height | Pressure ring / part no. | Compensation |
|---|---|---|
| New – 26.50 mm | 003002001729 | 0.00 mm* |
| 27.50 – 26.25 mm | 003002001922 | 0.25 mm |
| 27.50 – 26.50 mm | 003002001730 | 0.50 mm |
| 27.25 – 25.75 mm | 003002001923 | 0.75 mm |
| 27.00 – 25.50 mm | 003002001731 | 1.00 mm |
| 26.75 – 25.25 mm | 003002001924 | 1.25 mm |
| 26.50 – 25.00 mm | 003002001732 | 1.50 mm |
| 26.25 – 24.75 mm | 003002001925 | 1.75 mm |
| 26.00 – 24.50 mm | 003002001733 | 2.00 mm |
| 25.75 – 24.25 mm | 003002001926 | 2.25 mm |
| 25.50 – 24.00 mm | 003002001734 | 2.50 mm |
| 25.25 – 23.75 mm | 003002001927 | 2.75 mm |
| 25.00 – 23.50 mm | 003002001735 | 3.00 mm |
| 24.75 – 23.25 mm | 003002001928 | 3.25 mm |
| 24.50 – 23.00 mm | 003002001736 | 3.50 – 5.00 mm |
* Reference ring (new condition), no wear compensation.

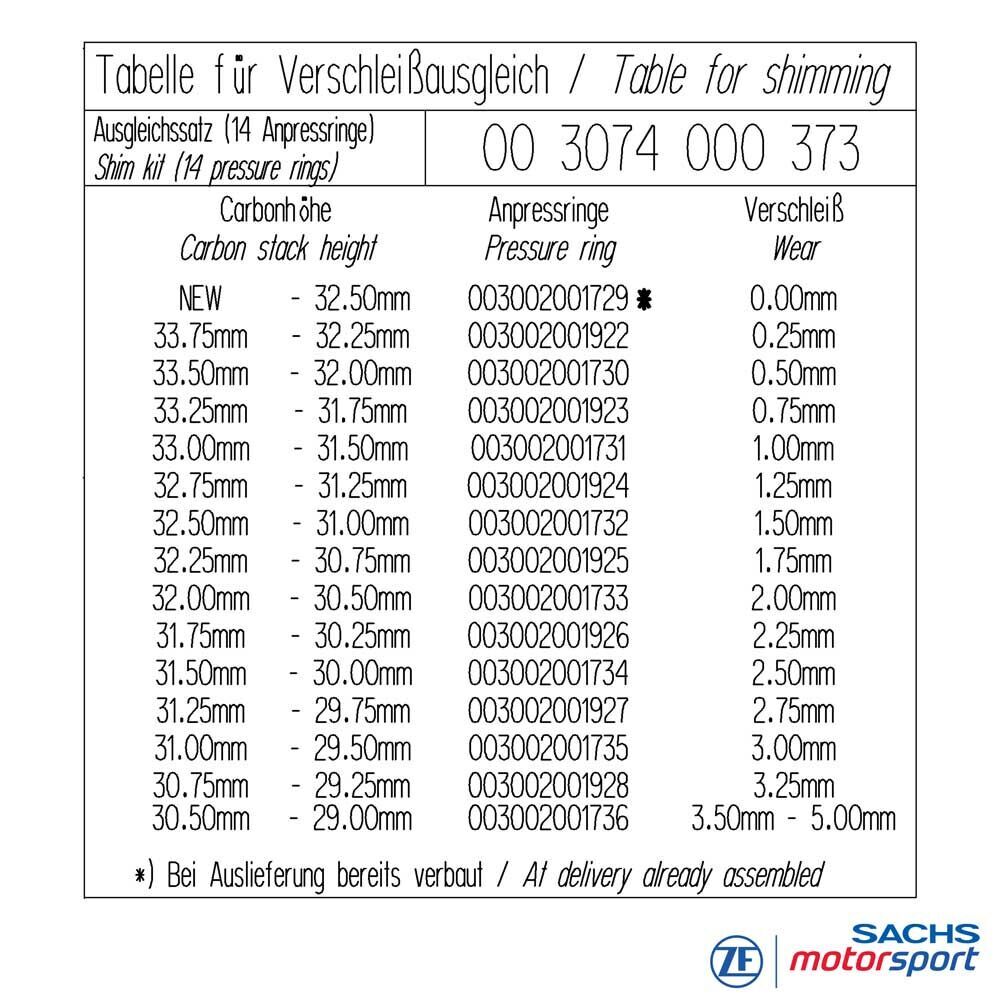

For RCC 4/140 carbon clutch
| Carbon stack height | Pressure ring / part no. | Compensation |
|---|---|---|
| New – 32.50 mm | 003002001729 | 0.00 mm* |
| 33.75 – 32.25 mm | 003002001922 | 0.25 mm |
| 33.50 – 32.00 mm | 003002001730 | 0.50 mm |
| 33.25 – 31.75 mm | 003002001923 | 0.75 mm |
| 33.00 – 31.50 mm | 003002001731 | 1.00 mm |
| 32.75 – 31.25 mm | 003002001924 | 1.25 mm |
| 32.50 – 31.00 mm | 003002001732 | 1.50 mm |
| 32.25 – 30.75 mm | 003002001925 | 1.75 mm |
| 32.00 – 30.50 mm | 003002001733 | 2.00 mm |
| 31.75 – 30.25 mm | 003002001926 | 2.25 mm |
| 31.50 – 30.00 mm | 003002001734 | 2.50 mm |
| 31.25 – 29.75 mm | 003002001927 | 2.75 mm |
| 31.00 – 29.50 mm | 003002001735 | 3.00 mm |
| 30.75 – 29.25 mm | 003002001928 | 3.25 mm |
| 30.50 – 29.00 mm | 003002001736 | 3.50 – 5.00 mm |
* Reference ring (new condition), no wear compensation.
