Description

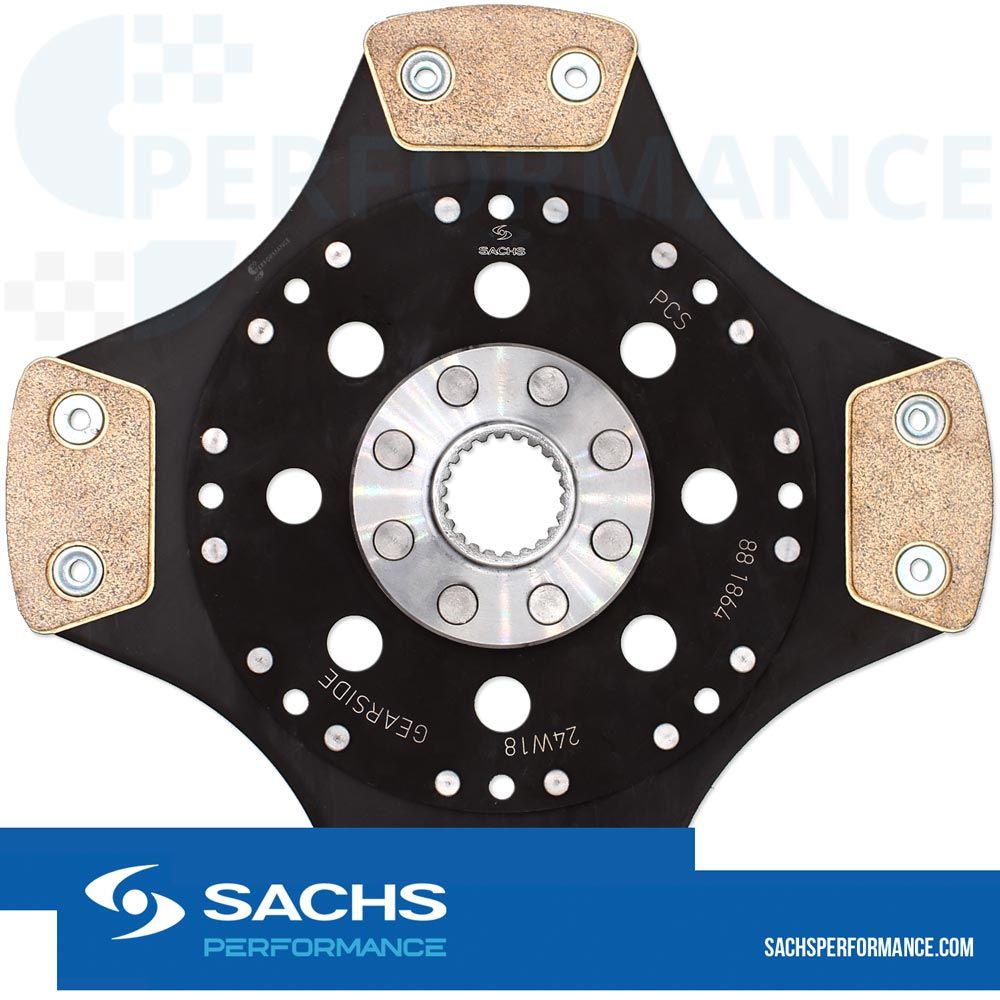

Rigid clutch disc with sintered metal plates
Manufacturer compare numbers
BMW
21 21 1 203 694
21 21 1 205 289
21 21 1 206 189
21 21 1 206 190
21 21 1 208 699
21 21 1 209 167
21 21 1 223 003
21 21 1 223 004
21 21 1 223 019
21 21 1 223 020
21 21 1 223 043
21 21 1 223 047
21 21 1 223 083
21 21 1 223 084
21 21 1 223 086
21 21 1 223 087
21 21 1 223 090
21 21 1 223 091
21 21 1 223 094
21 21 1 223 095
21 21 1 223 205
21 21 1 223 207
21 21 1 223 210
21 21 1 223 260
21 21 1 223 261
21 21 1 223 290
21 21 1 223 291
21 21 1 223 483
21 21 1 223 485
21 21 1 223 492
21 21 1 223 493
21 21 1 223 494
21 21 1 223 495
21 21 1 223 561
21 21 1 223 566
21 21 1 223 567
21 21 1 223 568
21 21 1 223 578
21 21 1 225 784
21 21 1 225 788
21 21 1 225 958
21 21 1 225 959
21 21 1 226 107
21 21 1 226 109
21 21 4 311 200
21 21 9 058 932
4 311 200
9 058 932
HANOMAG HENSCHEL
004 250 38 03
004 250 54 03
MERCEDES-BENZ
A 005 250 14 03
A 005 250 16 03
A 006 250 18 03
A 006 250 36 03
A 007 250 91 03
A 007 250 92 03
A 007 250 93 03
A 009 250 90 03
A 009 250 91 03
A 017 250 76 03
A 022 250 08 03
A 022 250 09 03
005 250 14 03
005 250 16 03
006 250 18 03
006 250 36 03
007 250 91 03
007 250 92 03
007 250 93 03
009 250 90 03
009 250 91 03
017 250 76 03
022 250 08 03
022 250 09 03
REFORM
211.180.106
Manufacturer
Product Tags
Designed to make a
difference
The philosophy and key to the success of ZF SACHS Race Engineering has been the constant search for improvement and the willingness to push the boundaries of what is possible. The precise engineering and quality has resulted in SACHS Performance clutches and suspensions becoming an integral part of the world's most successful race cars.
Clutch Disc
SACHS Racing
Sintered metal, rigid
Sinter-Pad clutch discs are subjected to very high loads and are complex components with a compact design. In addition to torque transmission, they fulfil additional tasks such as torsional vibration damping and extremely high heat resistance. Rigid clutch discs have fewer components than the sprung version and are less susceptible to faults in limit ranges while at the same time offering higher torque transmission capacities.
Advantages:
Higher transmittable torque compared to organic friction material.
Higher thermal capacity compared to organic friction material.
Higher burst number of revolutions
Lightweight and therefore lower mass and inertia
Very dirt resistant
Aggressive start performance
Effortless 1:1 exchange with OE clutch disc
The Technology
Clutch disc - sintered metal
The SACHS Racing SinterPad clutch disc 881864.999758 has a higher thermal load capacity and higher rpm resistance than organic standard clutch discs and is particularly resistant to dirt and oil. It enables harder starting, i.e. abrupt clutch engagement and significantly higher torques can be transmitted. Combined with the SACHS Performance clutch pressure plate, the result is an ideal clutch for motorsport use and for extremely performance-enhanced vehicles. - Benefit from the highest quality coupled with in-depth motorsport expertise.
Clutch Cushion Spring
The cushion spring improves starting comfort and ensures that the clutch friction material are evenly supported. Cushion springs are corrugated spring plate segments with a spring travel of up to approx. 1 mm, which are riveted to the clutch disc carrier plate on the transmission side. In the case of high-performance SACHS Performance clutch discs, this cushion spring is sometimes omitted in favour of a higher transmittable torque compared to the standard clutch disc.
Quality "Made in Germany"
The clutch systems from ZF Race Engineering have brought motor sports teams worldwide to the forefront, from mass sports to Formula 1.
The knowledge gained from these race series has been flowing into the development of High Performance products for years.
Fields of Application
TUNING
Chip tuning,
Turbo and supercharger conversions
SHORT DISTANCE
1/4 mile races,
acceleration races
COMPETITIONS
Rally
(e.g., Group N)
CIRCUIT
Endurance races,
club sport and autocross
EVENTS
Hill climbs, slalom,
drift
