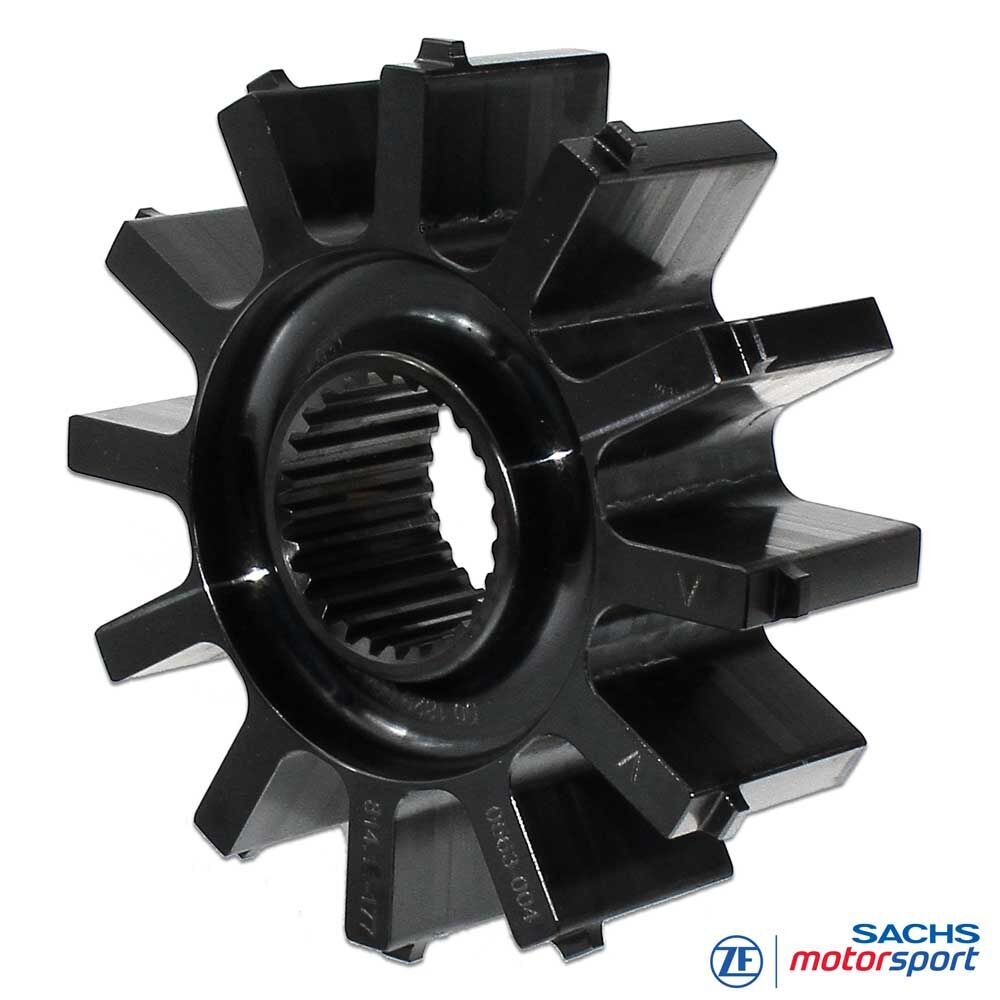

ZF Motorsport Clutch Hub - for SACHS RCS 115 / 140 / 184 carbon clutches
The clutch hub is the torque-carrying heart of your carbon racing clutch: it locates positively on the gearbox input shaft (internal spline) and drives the carbon driven plates securely. For precise launches, clean shifts and maximum durability, the hub, spline profile and hub length must match your setup.
Clutch hub benefits
- Accurate torque transfer: A precisely matched input-shaft spline minimises fretting and play.
- Correct set-up: Available as K (Flat/Short) and L (Long) – for correct stack height, clearance to flywheel bolts and the release bearing.
- Motorsport-grade material: High-strength, heat-treated steel; black-oxidised finish.
- Service-friendly: Replaceable component – can be renewed without changing the entire clutch assembly.
Compatibility
For SACHS carbon clutches from ZF Motorsport in the RCS Series, sizes RCS 115, RCS 140 and RCS 184. Please select the RCS size, spline profile (e.g. 1.00"×23T, 1 1/8"×26T, 29×10 mm) and hub length (K/L) to suit your gearbox/setup.
Technical data
| Component | Clutch/Drive Hub |
|---|---|
| Compatible product line | SACHS RCS 115 · 140 · 184 carbon clutches from ZF Motorsport |
| Internal spline | To match gearbox input shaft (e.g. 1.00"×23T, 1 1/8"×26T, 29×10 mm) |
| Hub length | K (Flat/Short) or L (Long) |
| Material | High-strength, heat-treated steel |
| Surface | Black-oxidised |
| Function | Torque transmission; tuning of stack height & set-up height; clearance for release bearing |
| Scope of supply | 1 × clutch hub |
Practice & installation notes
- Check the spline: Identify tooth count and input-shaft diameter precisely (mm or inch); observe tolerances.
- Stack height / set-up: Verify friction-pack thickness and set-up dimensions against the drawing; choose the correct K/L hub length.
- Installation: Clean all contact faces; the hub must slide freely on the shaft; a minimal amount of anti-seize is permissible.
- Clearance: Ensure clearance to flywheel bolts and the release bearing; check run-out/planarity.
- Professional service: Install and inspect per manufacturer guidance; intended for motorsport use.
