Description
Rigid clutch disc with sintered metal plates
Manufacturer compare numbers
BMW
0 670 024
0 670 025
1 203 149
1 203 696
1 203 996
1 204 034
1 205 295
1 207 321
1 207 454
1 207 540
1 207 545
1 207 546
1 208 951
1 223 041
1 223 052
1 223 097
1 223 098
1 223 114
1 223 115
1 223 117
1 223 118
1 223 136
1 223 137
1 223 174
1 223 175
1 223 671
1 225 046
1 225 199
1 225 215
1 225 380
1 225 562
1 225 563
1 225 622
1 225 677
1 225 678
1 225 679
1 225 680
1 225 781
1 225 782
1 225 936
1 226 171
12 11 6 012 022
2 225 618
2 225 816
2 226 447
2 226 448
2 226 664
2 226 665
2 226 841
21 21 0 670 024
21 21 0 670 025
21 21 1 203 149
21 21 1 203 696
21 21 1 203 996
21 21 1 204 034
21 21 1 205 295
21 21 1 207 321
21 21 1 207 540
21 21 1 207 545
21 21 1 207 546
21 21 1 223 041
21 21 1 223 052
21 21 1 223 097
21 21 1 223 098
21 21 1 223 114
21 21 1 223 115
21 21 1 223 117
21 21 1 223 118
21 21 1 223 136
21 21 1 223 137
21 21 1 223 174
21 21 1 223 175
21 21 1 223 671
21 21 1 225 046
21 21 1 225 199
21 21 1 225 215
21 21 1 225 380
21 21 1 225 562
21 21 1 225 563
21 21 1 225 622
21 21 1 225 677
21 21 1 225 678
21 21 1 225 679
21 21 1 225 680
21 21 1 225 781
21 21 1 225 782
21 21 1 225 936
21 21 2 225 618
21 21 2 225 816
21 21 2 226 447
21 21 2 226 448
21 21 2 226 664
21 21 2 226 665
21 21 2 226 841
33 10 1 207 454
6 012 022
Manufacturer
Product Tags
Designed to make a
difference
The philosophy and key to the success of ZF SACHS Race Engineering has been the constant search for improvement and the willingness to push the boundaries of what is possible. The precise engineering and quality has resulted in SACHS Performance clutches and suspensions becoming an integral part of the world's most successful race cars.
Clutch Disc
SACHS Racing
Sintered metal, rigid
Sinter-Pad clutch discs are subjected to very high loads and are complex components with a compact design. In addition to torque transmission, they fulfil additional tasks such as torsional vibration damping and extremely high heat resistance. Rigid clutch discs have fewer components than the sprung version and are less susceptible to faults in limit ranges while at the same time offering higher torque transmission capacities.
Advantages:
Higher transmittable torque compared to organic friction material.
Higher thermal capacity compared to organic friction material.
Higher burst number of revolutions
Lightweight and therefore lower mass and inertia
Very dirt resistant
Aggressive start performance
Effortless 1:1 exchange with OE clutch disc
The Technology

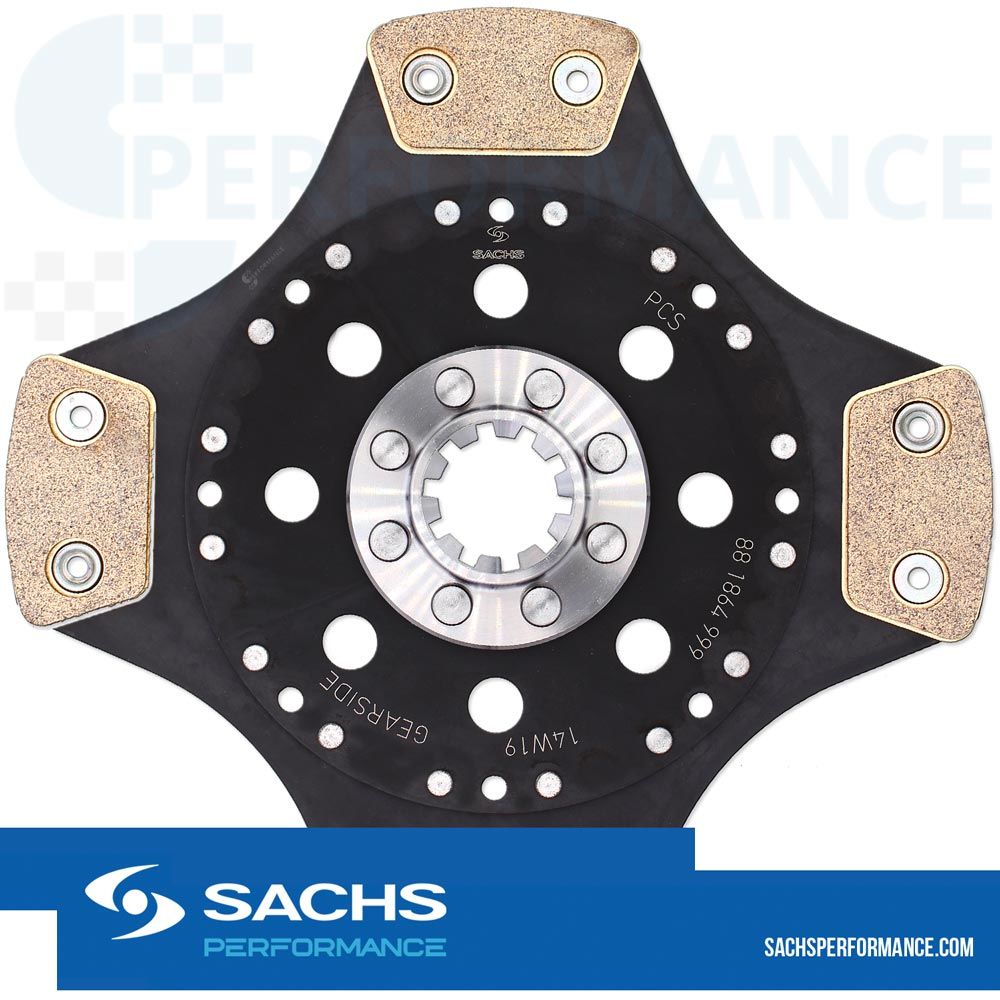

Clutch disc - sintered metal
The SACHS Racing SinterPad clutch disc 881864.999739 has a higher thermal load capacity and higher rpm resistance than organic standard clutch discs and is particularly resistant to dirt and oil. It enables harder starting, i.e. abrupt clutch engagement and significantly higher torques can be transmitted. Combined with the SACHS Performance clutch pressure plate, the result is an ideal clutch for motorsport use and for extremely performance-enhanced vehicles. - Benefit from the highest quality coupled with in-depth motorsport expertise.
Clutch Cushion Spring
The cushion spring improves starting comfort and ensures that the clutch friction material are evenly supported. Cushion springs are corrugated spring plate segments with a spring travel of up to approx. 1 mm, which are riveted to the clutch disc carrier plate on the transmission side. In the case of high-performance SACHS Performance clutch discs, this cushion spring is sometimes omitted in favour of a higher transmittable torque compared to the standard clutch disc.
Quality "Made in Germany"
The clutch systems from ZF Race Engineering have brought motor sports teams worldwide to the forefront, from mass sports to Formula 1.
The knowledge gained from these race series has been flowing into the development of High Performance products for years.
Fields of Application
TUNING
Chip tuning,
Turbo and supercharger conversions
SHORT DISTANCE
1/4 mile races,
acceleration races
COMPETITIONS
Rally
(e.g., Group N)
CIRCUIT
Endurance races,
club sport and autocross
EVENTS
Hill climbs, slalom,
drift
