Clutch Shim Kit 003074000426
Shim kit for SACHS carbon clutch RCS 3/115
Consistent performance across service intervals: the ZF Motorsport SACHS RCS 3/115 shim kit 003074000426 compensates carbon clutch-pack wear and restores the diaphragm spring’s original operating point. The torque capacity of the 115 mm carbon racing clutch remains stable – with a clean pedal feel and repeatable clamp load.

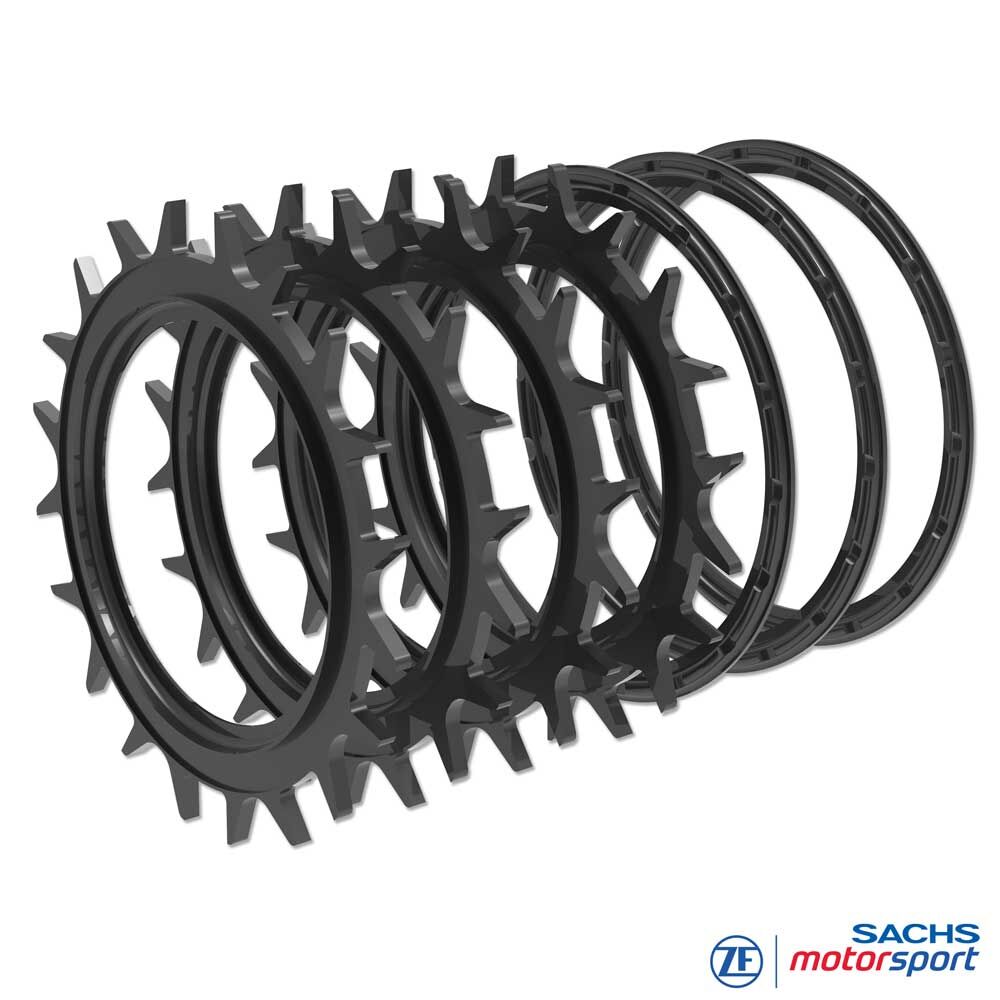

Shim kit contents: 3 base plates + 3 pressure rings in fine graduated thicknesses for precise service setups.
Maximum wear compensation: up to 4.75 mm (via suitable combinations per wear table).
Key benefits
Complete kit for maximum wear compensation
Maximum service life of the carbon stack
Stable torque capacity over the entire duty cycle
Fine-step adjustment of installation height
Top manufacturing quality, tight thickness tolerances
Service-friendly, repeatable setups
Technology
Shim kit RCC 3/115

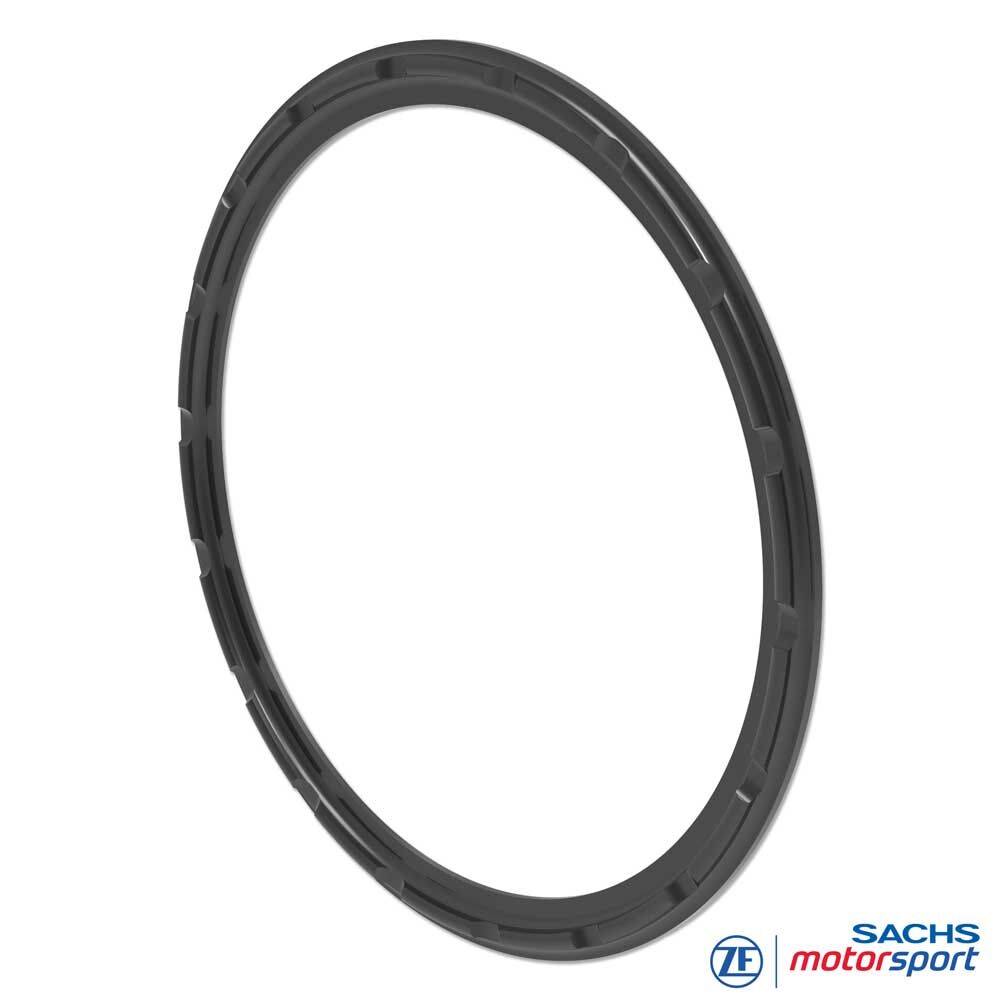

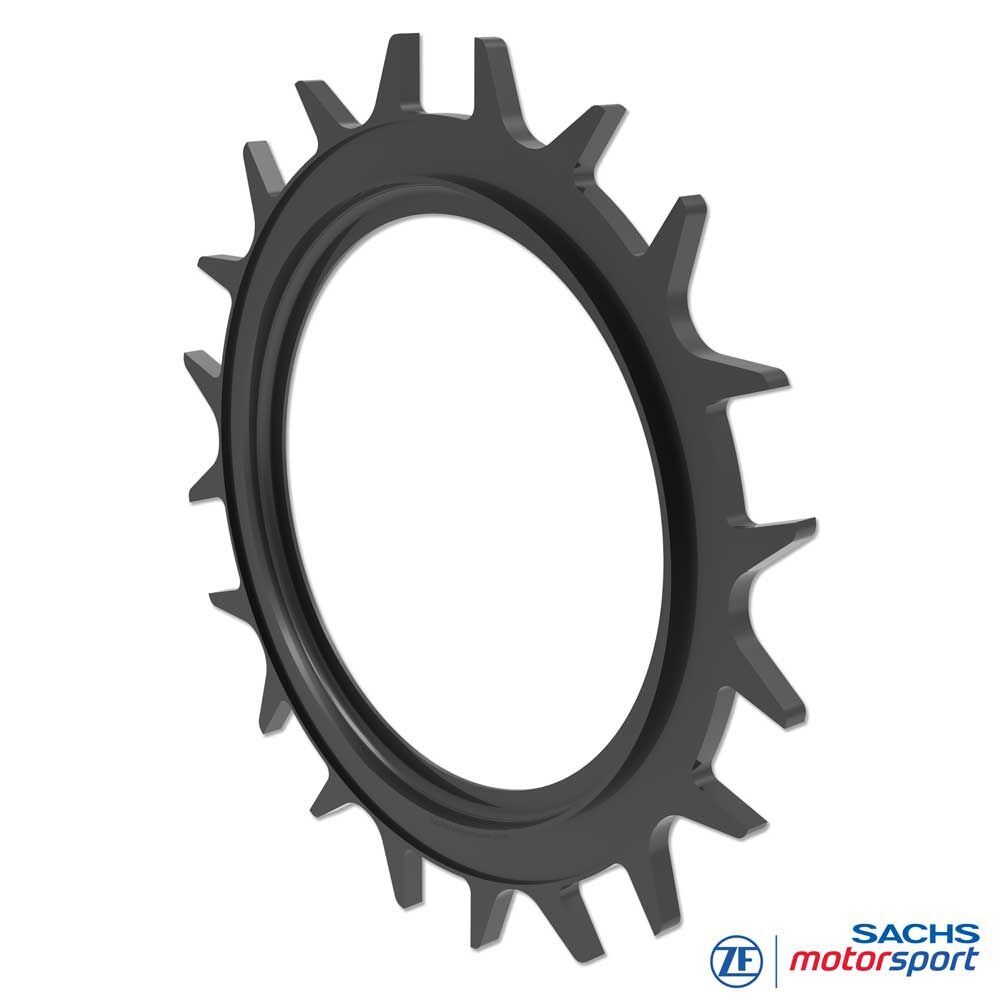

Function: targeted compensation of carbon-stack wear. Base plates primarily restore the static stack height, while pressure rings fine-tune the fulcrum/clamp point at the clutch base plate. Together they bring the diaphragm spring’s operating range back to nominal – for consistent clamp load, controlled release travel and minimized slip.
Steps: finely graduated, in 0.25 mm increments, to precisely restore installation height and resulting kinematics.
Shim concept: 3 base plates + 3 pressure rings per set; wear compensation up to 4.75 mm via suitable combinations (see wear-compensation table).
Material: high-strength tempered steel with surface treatment for temperature and load-cycle resistance.
Quality standard: manufactured to ZF Motorsport specification; tight run-out and thickness tolerances for repeatable results.
Practice / installation notes
Measure stack height: measure the carbon pack (friction and intermediate plates) as per series specification. Use RCS 3/115 reference dimensions.
Target/actual comparison: use the series-specific wear values; the difference defines the compensation required.
Ring/plate selection: choose a combination that keeps installation height in the target range; avoid over-compensation.
Observe wear limit: if exceeded, replace the RCS 3/115 carbon pack – changing rings/plates alone is not sufficient.

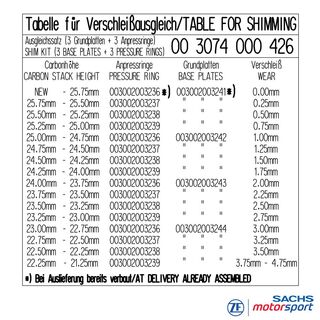

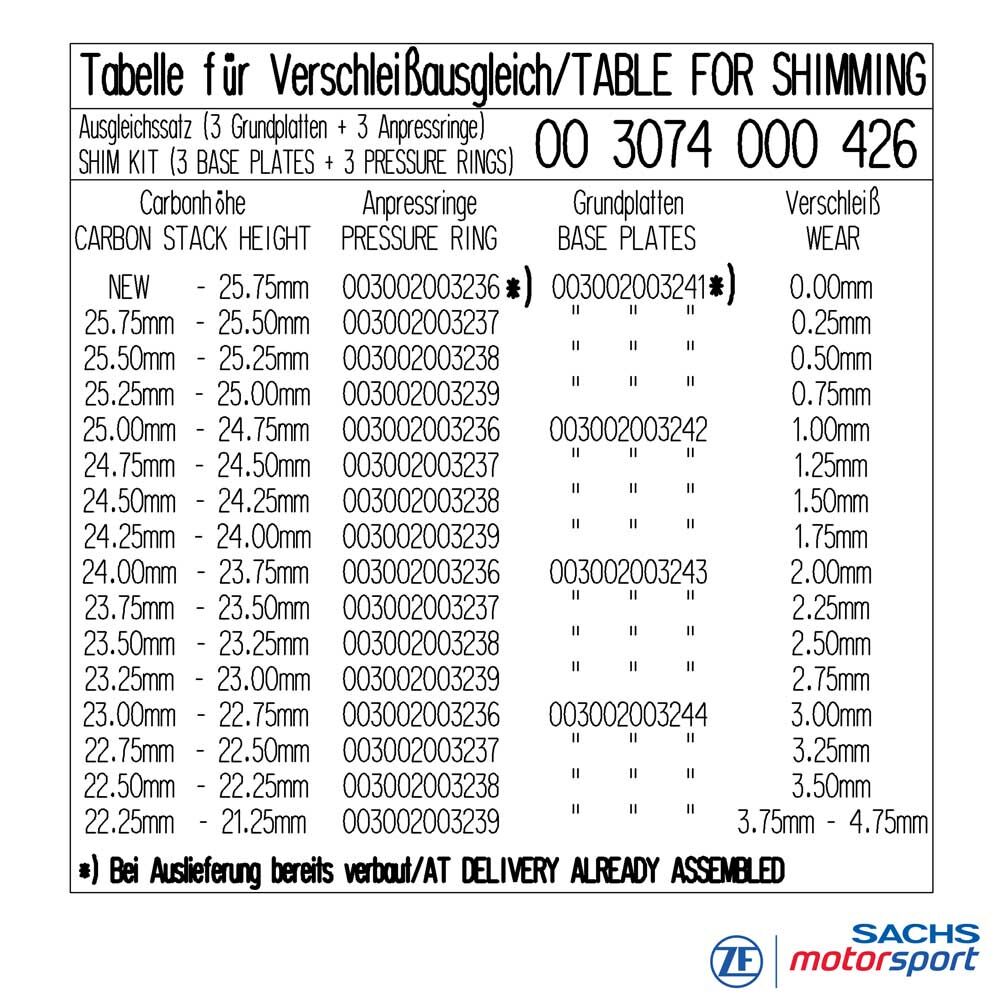

Wear-compensation table
For RCC 3/115 carbon clutch
| Carbon stack height | Base plate / pressure ring | Compensation |
|---|---|---|
| New – 25.75 mm | Base plate: 003002003241 * 003002003236 * | 0.00 mm * |
| 25.75 – 25.25 mm | 003002003237 | 0.25 mm |
| 25.50 – 25.25 mm | 003002003238 | 0.50 mm |
| 25.25 – 25.00 mm | 003002003239 | 0.75 mm |
| 25.00 – 24.75 mm | Base plate I: 003002003242 003002003236 | 1.00 mm |
| 24.75 – 24.50 mm | 003002003237 | 1.25 mm |
| 24.50 – 24.25 mm | 003002003238 | 1.50 mm |
| 24.25 – 24.00 mm | 003002003239 | 1.75 mm |
| 24.00 – 23.75 mm | Base plate II: 003002003243 003002003236 | 2.00 mm |
| 23.75 – 23.50 mm | 003002003237 | 2.25 mm |
| 23.50 – 23.25 mm | 003002003238 | 2.50 mm |
| 23.25 – 23.00 mm | 003002003239 | 2.75 mm |
| 23.00 – 22.75 mm | Base plate III: 003002003244 003002003236 | 3.00 mm |
| 22.75 – 22.50 mm | 003002003237 | 3.25 mm |
| 22.50 – 22.25 mm | 003002003238 | 3.25 mm |
| 22.25 – 21.25 mm | 003002003239 | 3.75 – 4.75 mm |
* Reference ring/base plate (new), without wear compensation.
