SACHS RCS Adapter Plate

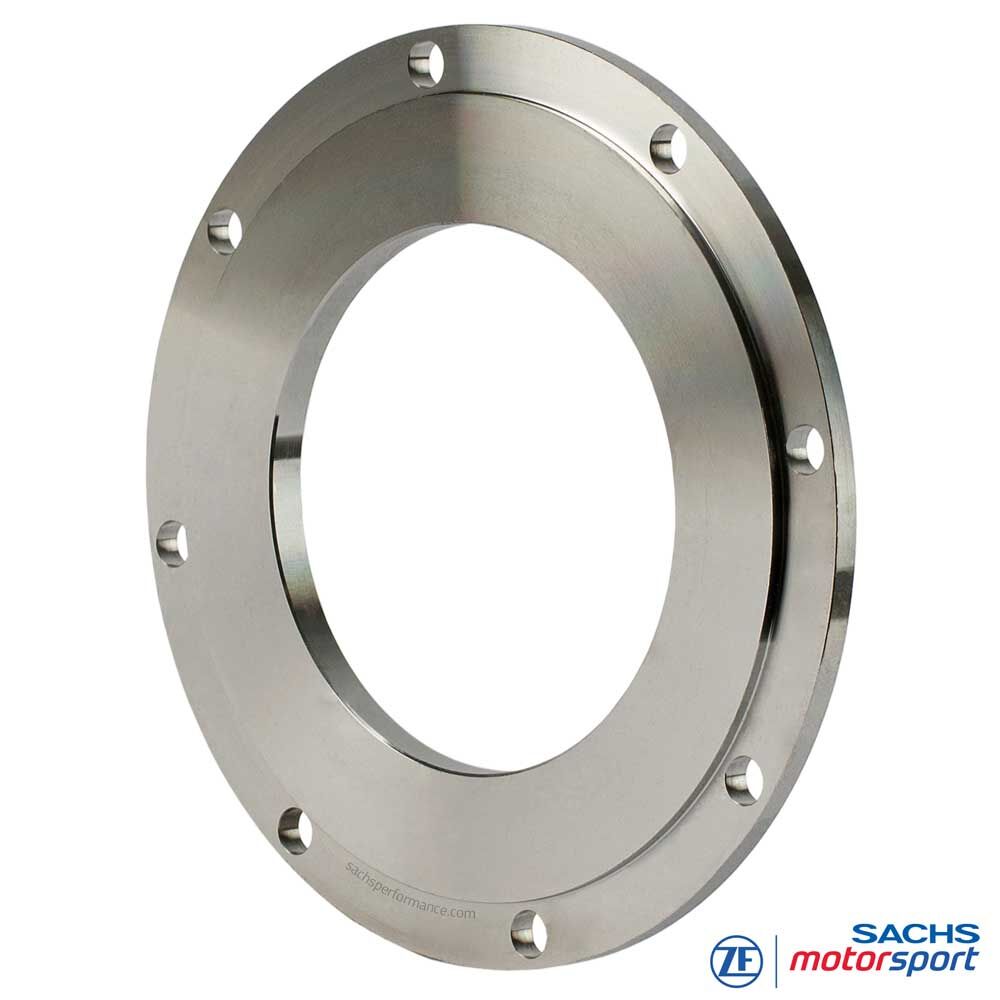

RCS Adapter plates prevent wear on the flywheel. They must be centered on the flywheel and show the necessary contour for RCS clutches.
Clutches are normally bolted directly onto the flywheel. Wear results from the fact that the clutch works on a friction principle. This means that the clutch and the flywheel show the effects of abrasion. Since flywheels are generally expensive components, optional adapter plates can be used to protect the flywheel from wear. SACHS Adapter plates serve as a friction partner for the clutch. The flywheel is not exposed to wear, and therefore does not need to be replaced. Adapter plates can also be used to give a flywheel the right contour to be installed in an existing standard flywheel.
Connection dimensions
Connection dimensions RCS140-Adapter Plate (00 3021 999 524):- Ø A: 167mm
- Ø B: 154,45mm
- Ø C -0.05: 97mm
- Weight [kg]: 0,77
- Mass of inertia [kgm2]: 0,0034
Connection dimensions RCS184-Adapter Plate (00 3021 999 525):
- Ø A: 215 mm
- Ø B: 200 mm
- Ø C -0.05: 132 mm
- Weight [kg]: 1,22
- Mass of inertia [kgm2]: 0,0093
Connection dimensions RCS200-Adapter Plate (00 3021 999 526):
- Ø A: 227 mm
- Ø B: 214 mm
- Ø C -0.05: 132 mm
- Weight [kg]: 1,48
- Mass of inertia [kgm2]: 0,0123
Installation
The adapter plate is centered via the outer diameter of the flywheel. It must be centered at least 1 mm from the edge (please see illustration).
