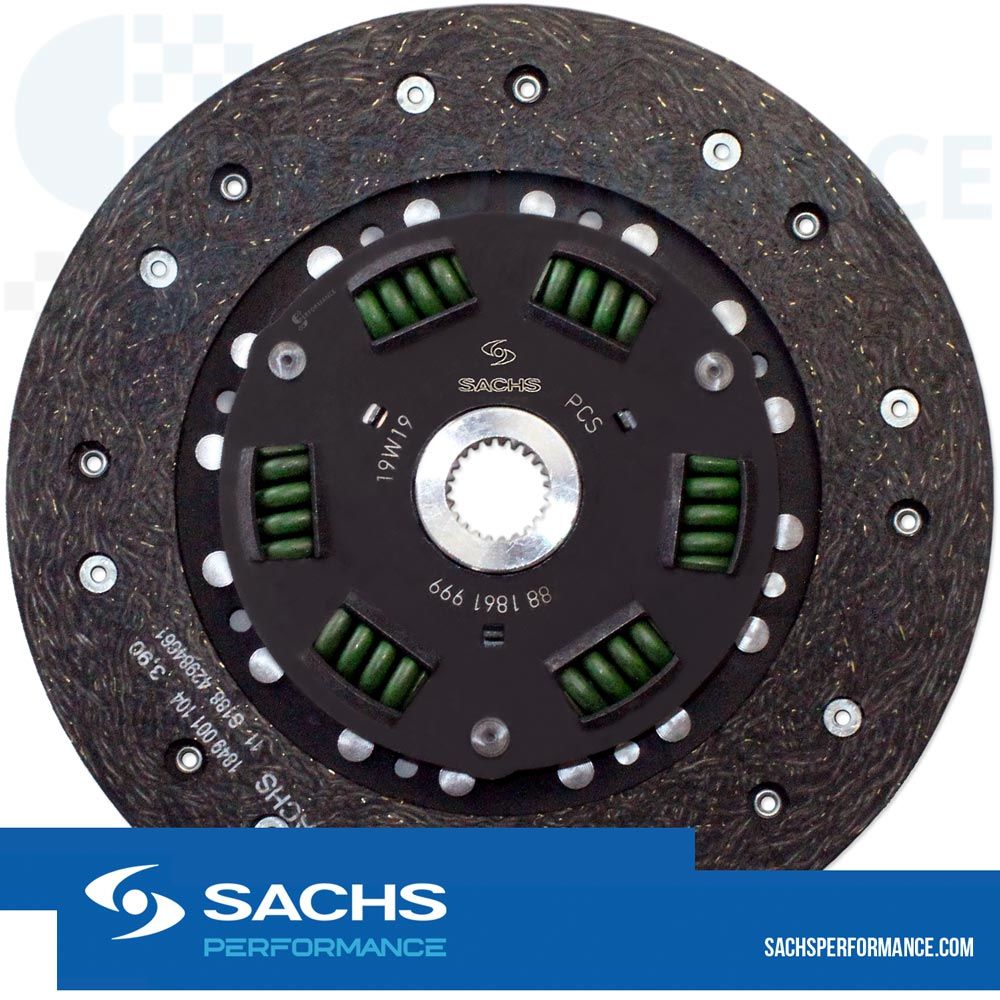

Clutch Disc - SACHS Performance

Item number: 881861.999822


Paypal UPS
330,11 €

including 19% VAT., plus shipping

Recommended retail price: 347,48 €
(You save 5 %, that is 17,37 €)
Available now!

Shipping time: 1 - 2 workdays

NON-EU CUSTOMERS

With your order 19% VAT will be deducted.



Description

Diameter [mm]: 228 - Number of Teeth: 22 Hub Profile: 22,3x25,2-22N
Transmittable torque [Nm]: 520
Clutch disc, torsion damped, with special organic clutch friction material

MAZDA
BP02-16-460
BP02-16-460 A
BP02-16-460 B
N203-16-460 A
N203-16-460 B
N204-16-460

VOLVO
1209586
1209871
1220801
1220942
1220986
1232676
1340636
1377116
1377326
1377327
3502634
3502640
3520405
3549307
3549532
3549533
3549534
3549535
3549536
3549538
46170
6814422
6814584
6814586
6814599
6814600
6814601
6814602
6814603
6814604
6843623
6843627
6843631
9143473
9143474


SACHS Performance Kupplungsscheibe 881861

Innovative Engineering.

  • Higher transmittable torque
  • Higher thermal resistance
  • Higher burst number of revolutions
  • Longer life span
  • The torque damper has a higher stop position
  • Start Performance similar to OE
  • Effortless exchange with OE clutch disc
SACHS Clutch Disc - Function and Structure

Technical Details.

Clutch discs with torsion springs function as a vibration damper between engine and gearbox.

SACHS Performance clutch discs with organic friction material have a superior thermal resistance, are more resistant against rpm's as OE discs and are able to transmit higher torque. That makes it extremely useful for all kind of street tuning and for vehicles that are often driven with their maximum gross vehicle weight.

Installed together with the SACHS Performance clutch cover, you´ll experience the perfect combination between suitability for daily use and great drive experience.

Quality - Made in Germany.

The clutch systems from ZF SACHS Race Engineering have brought motor sports teams worldwide to the forefront, from mass sports to Formula 1.

The knowledge gained from these race series has been flowing into the development of High Performance products for years.

The SACHS Performance clutches are assembled by hand. This guarantees at all times the highest quality attributes in clamping load and release characteristics.

SACHS Performance Clutch Applications

Typically applications include:

  • Chip-Tuning, turbocharger and supercharger modifications
  • Vehicles with maximum gross vehicle weight and according to high load (towing trailers, campers)
  • 1/4 mile-race
  • Race circuit (endurance race, clubsport, autocross)
  • Rally (e.g. group N)
  • Slalom, Drift Racing
