EXTREME RESILIENCE

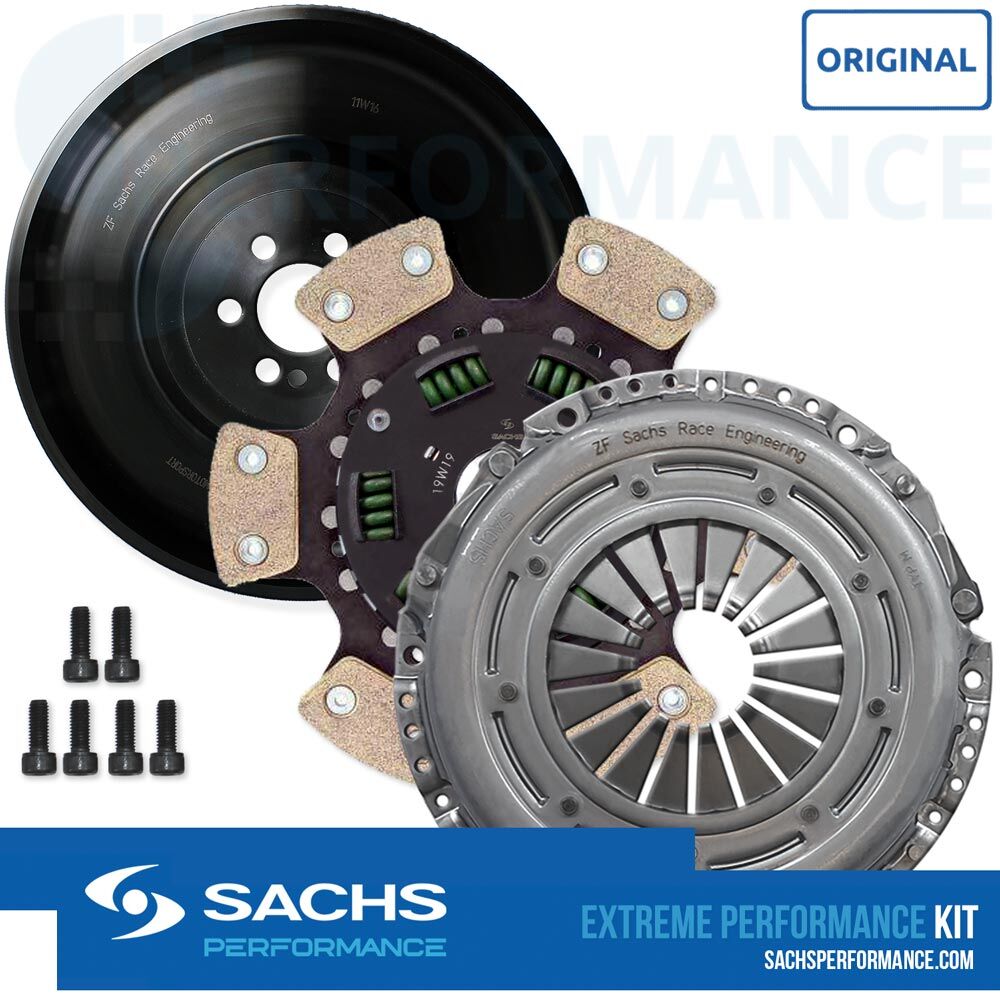

The SACHS racing clutch for Hyundai i30 (PD) and other models is characterised, among other things, by a significantly higher transmittable torque, greater insensitivity to thrust loads and very high thermal load capacity compared to a standard clutch. The clutch module 883089.000149 has been designed for engine speed until 12.000rpm.

SPORTIVE

Faster, sporty shifting is possible thanks to the shorter release travel. The SACHS Racing Clutch Module 883089.000149 is ideal for motorsport use and for extremely performance-enhanced vehicles. - Benefit from the highest quality coupled with well-founded motorsport expertise.

LIGHT

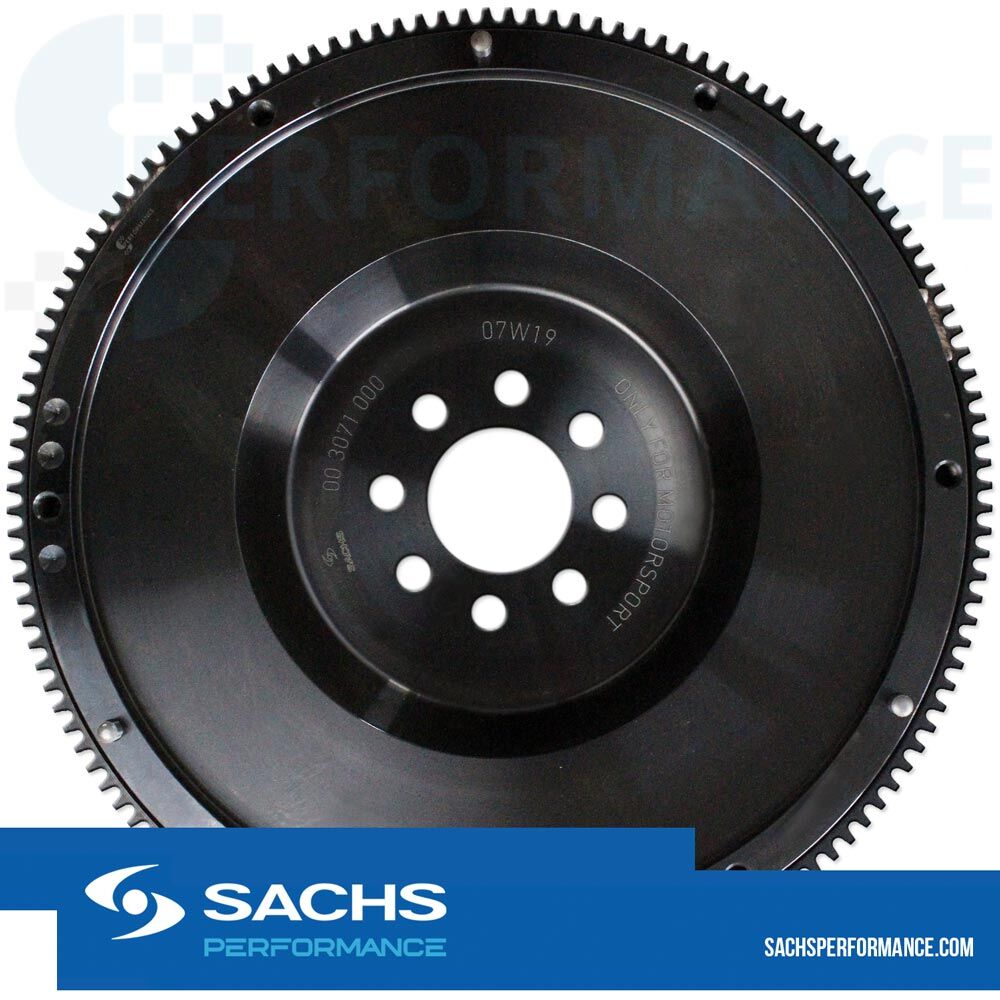

The existing dual-mass flywheel is replaced by the lightweight steel single-mass flywheel from SACHS Performance. Less rotating mass means faster engine revving, significantly improved throttle response and less stress on the crankshaft and bearings.

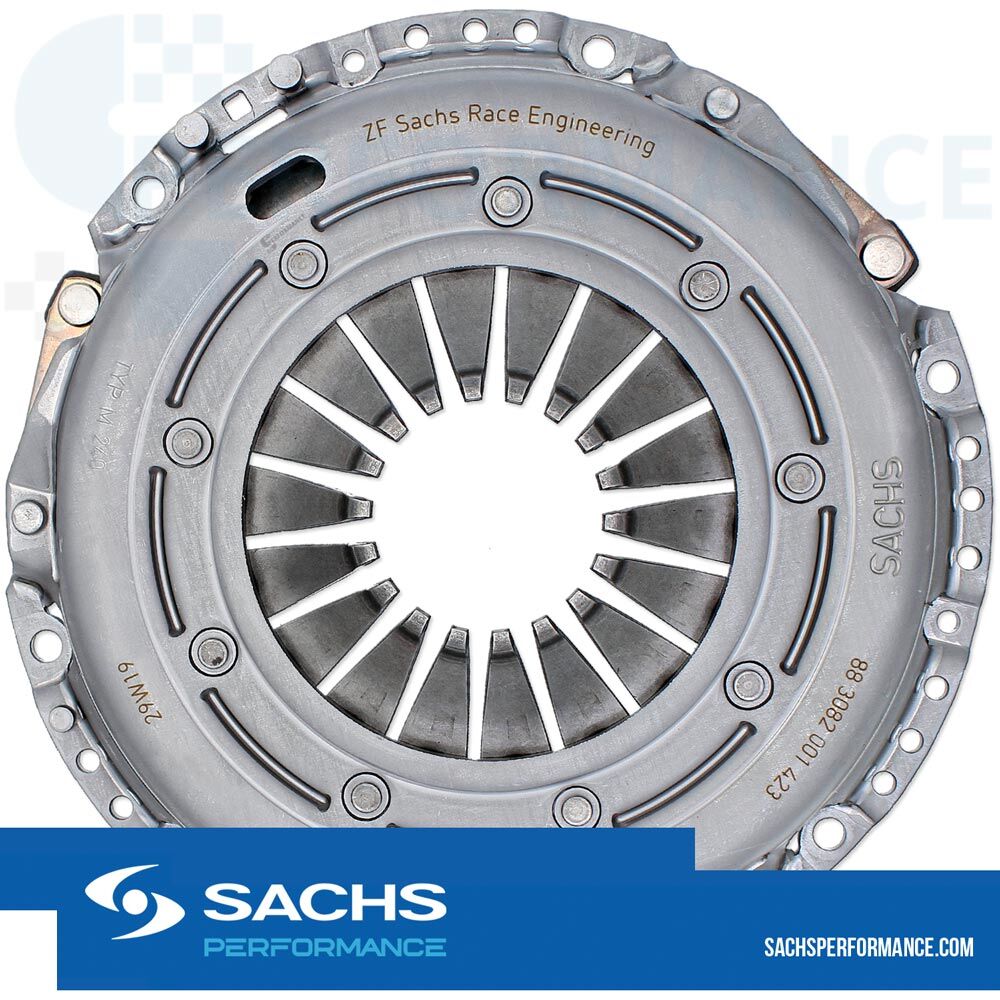

CLUTCH PRESSURE PLATE

The SACHS Performance clutch pressure plate for Hyundai i30 (PD) and other models is firmly bolted to the flywheel and, when engaged, transmits the engine torque to the clutch disc via the housing, the tangential leaf springs and the pressure plate.

Decisive factors for the design of the clutch pressure plate are the heat capacity of the pressure plate and the pressure and release force of the diaphragm spring. The diaphragm spring of the SACHS Performance pressure plate guarantees a high transmittable engine torque thanks to its shape, material and sporty characteristics.

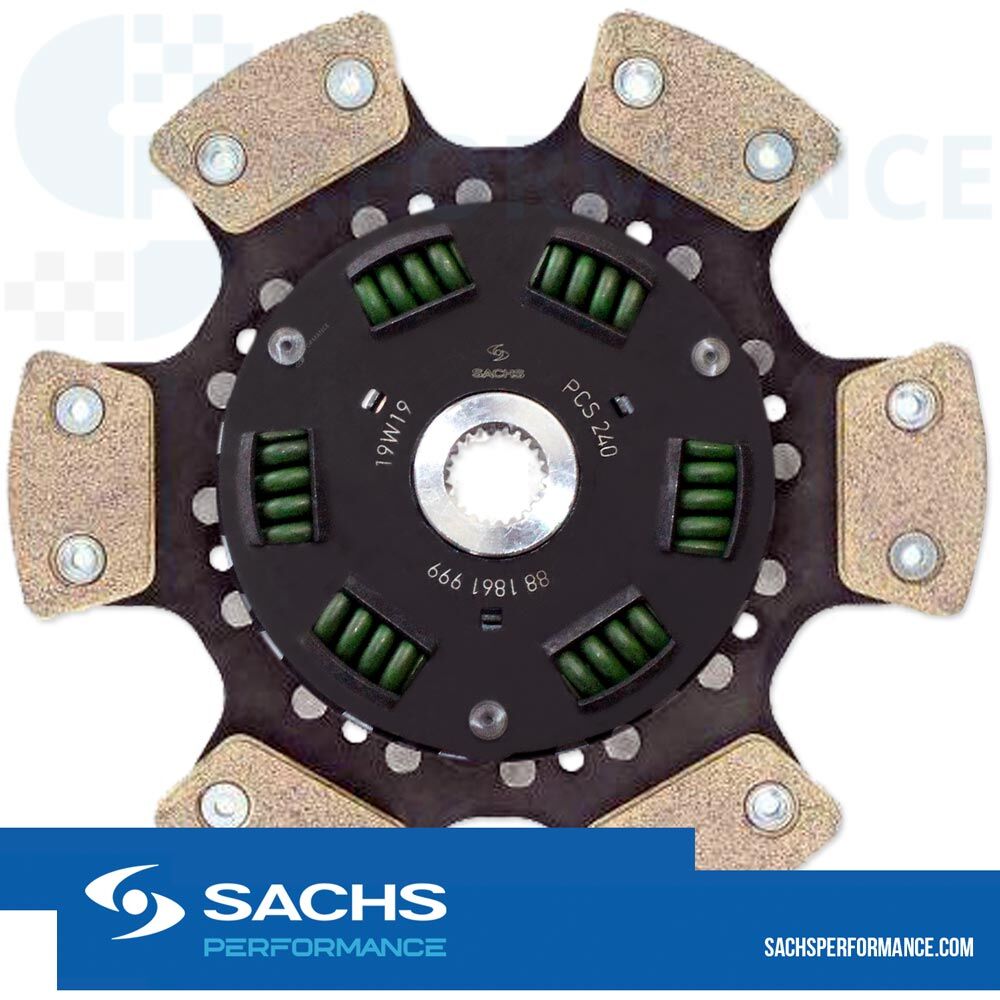

CLUTCH DISC

The SACHS Racing clutch disc with sinter-pad clutch lining for Hyundai i30 (PD) and other models is thermally highly resilient, higher rpm resistance and has a higher coefficient of friction than conventional, organic clutch linings. This makes it possible to start the vehicle harder, i.e. abrupt clutch engagement. In addition, the sintered metal clutch lining is particularly resistant to dirt and oil.

The torsion-sprung SACHS Racing clutch disc included in clutch kit 883089.000149 dampens engine vibration and protects your vehicle's transmission. SACHS Racing spring-loaded clutch discs are equipped with stronger torsion dampers in order to be able to transmit a higher maximum engine torque. Due to the mass reduction and stiffer connection resulting from the omission of the original dual-mass flywheel, increased transmission of transmission noise and vibrations cannot be ruled out.

TUNING

Chip tuning,
Turbo and supercharger conversions

SHORT DISTANCE

1/4 mile races,
acceleration races

COMPETITIONS

Rally
(e.g., Group N)

CIRCUIT

Endurance races,
club sport and autocross

EVENTS

Hill climbs, slalom,
drift
