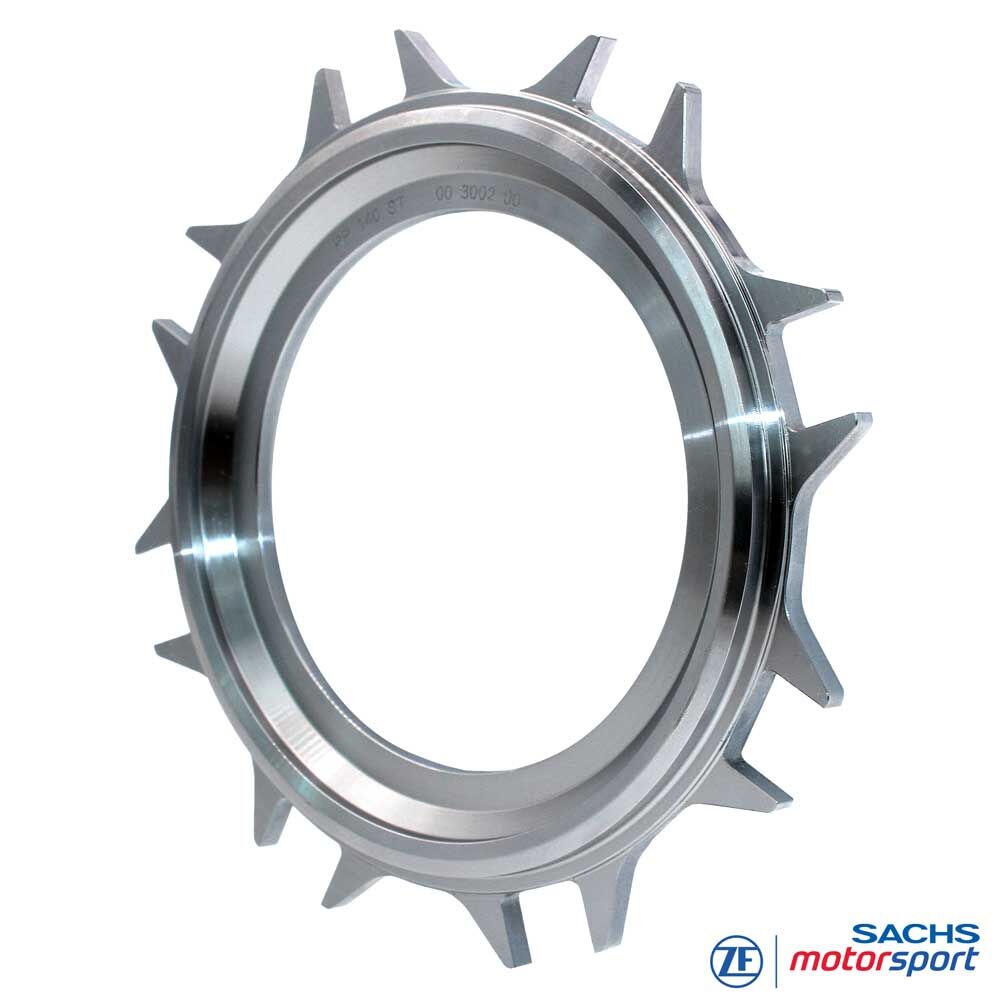

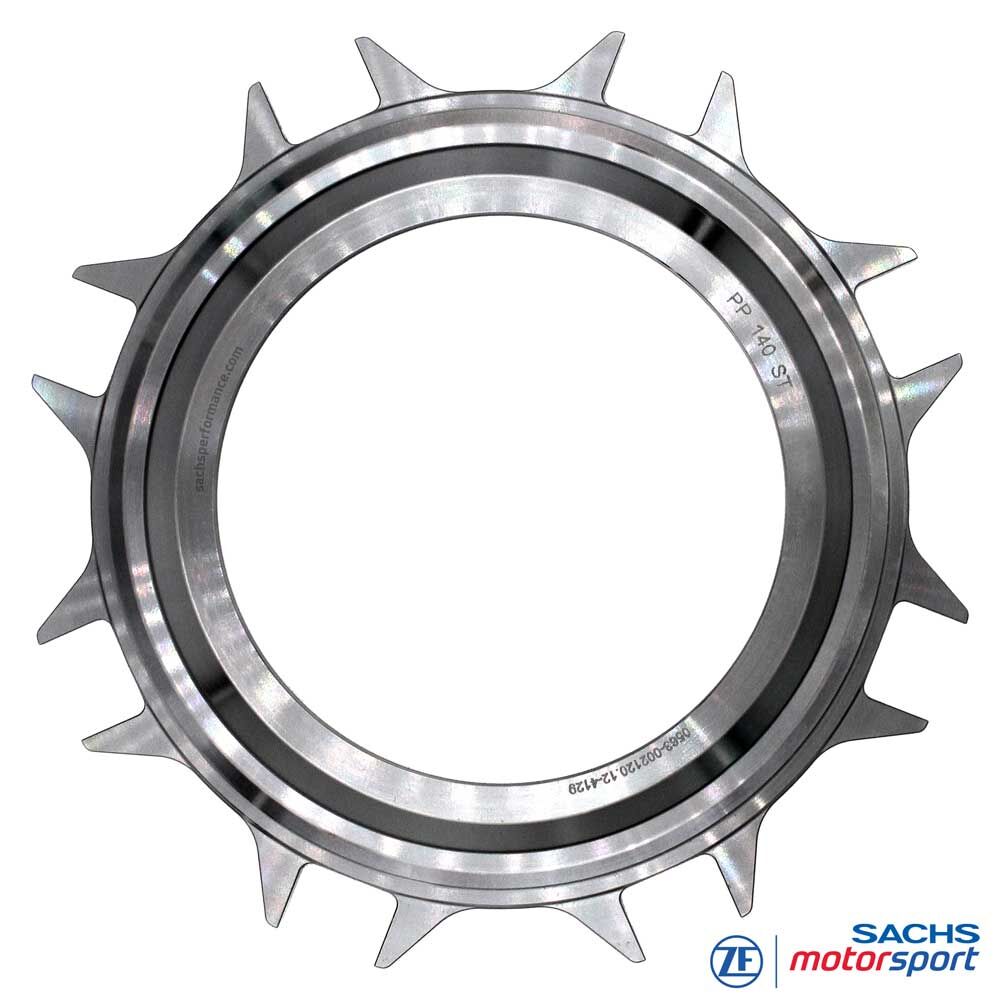

SACHS RCS 140 Clutch Pressure Plate
Service pressure plate for modular SACHS RCS 140 multi-plate racing clutches
Consistent clamp load and defined torque capacity: the pressure plate transfers diaphragm-spring force precisely into the friction pack for repeatable response. Available in two versions: for flat flywheel and for stepped flywheel.
High-strength steel, precision-ground friction face, application-specific spline – service-friendly as a single replaceable module without changing the clutch cover (housing).
Benefits at a glance
Stable clamp load & reliable torque capacity across the wear window
Precisely matched for flat or stepped flywheel
High-strength steel with low distortion
Precision friction faces for consistent pedal feel
Service-friendly – replaceable as a single module
Technical details
RCS 140 Pressure Plate
Function: Transfers diaphragm-spring force to sintered discs and intermediate plates; defines clamp load, torque capacity and shift precision.
Design: High-strength steel, ground friction face, positive-locking interface to the RCS housing; geometry matched to the RCS 140 diaphragm-spring rate.
Versions: Choice of flat or stepped flywheel – combine correctly with RCS friction and intermediate plates.
Service note: During overhaul, check runout/thickness/surface; if out of tolerance, replace the pressure plate together with friction and intermediate plates.
