ZF Race Engineering's SACHS motorsport clutches have stood for top-tier quality in international racing for decades. The ambition: continuous improvement and the drive to keep pushing the limits. From the lightest clutch used in Formula 1 to proven twin-plate and multi-plate systems in WRC, DTM, NASCAR, Le Mans and the Dakar Rally - ZF Motorsport technology is a core component of many winning cars worldwide.
SACHS Carbon Racing Clutch
RCC 2/140 - 570Nm
The Clutch of Competence
For virtually all categories of motorsport, ZF Race Engineering offers a broad portfolio of racing clutches. SACHS carbon clutches (RCC) are used from touring car and rally applications up to Formula 1. The product range benefits from top-tier technology proven in series such as Formula 1, Super GT and WRC.

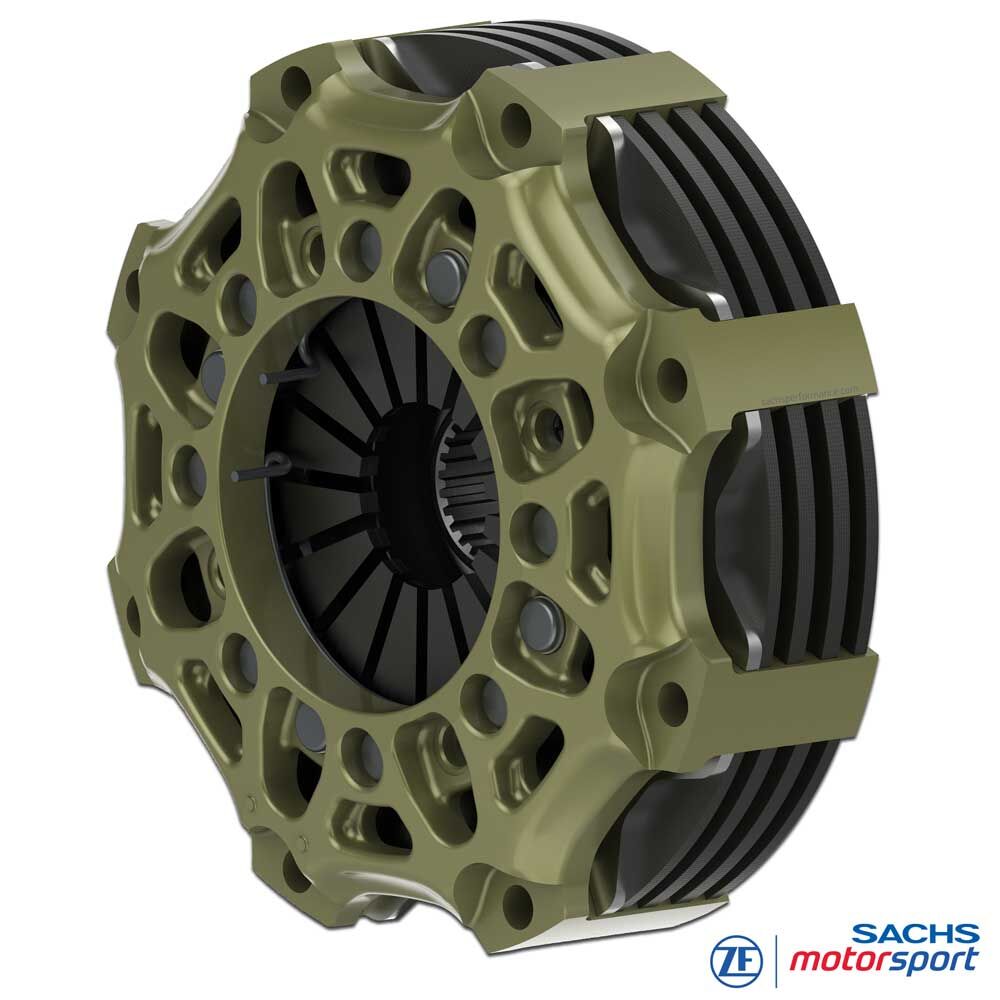

Compact, light, responsive: the RCC 2/140 carbon racing clutch from ZF Motorsport is engineered for sprint distances, tight circuits and series with limited installation space. The 140‑mm diameter minimises moment of inertia - the engine spins up faster, speed differences match quickly and shift windows become shorter. The system weight of only 1,92 kg and an MTM of 0,00515 kg·m² support agile response with high thermal stability.
This specification is rated for 570 Nm of transmittable engine torque. The required release force of 4.900 N correlates directly with the diaphragm spring characteristic and the resulting clamp load of the clutch pack - more release force allows more torque headroom while remaining easy to modulate thanks to precise kinematics. The result: a repeatable bite point, controlled launches and consistent lap times.
Benefits
maximum thermal resilience - carbon quality from Formula 1
very low weight and minimal moment of inertia
smooth and comfortable launch behavior
no flywheel wear
extreme durability - up to 4x longer than conventional sintered racing clutches
Lowest mass
One of the major strengths of a carbon racing clutch is its low mass and the resulting low moment of inertia.
They are designed for the lowest possible mass with the goal of transferring engine torque to the gearbox as quickly and directly as possible.
Lightening measures in the cranktrain that reduce the moment of inertia increase vehicle acceleration noticeably in the lower gears.
Faster acceleration
If, for example, the clutch has a moment of inertia (Mtm) of 0,061 kgm2, with a gearbox ratio of 13,4:1 (first gear ratio) this acts at the drive wheel with 180 times the value (13,42). Converting Mtm into vehicle mass results in an additional weight of approx. 145 kg in 1st gear that must be accelerated.
Thanks to the extremely low inertia of the SACHS carbon clutch, shift times are significantly reduced and the vehicle accelerates faster.
Maximum service life
For carbon clutches there are pressure plate and shim packs available that compensate carbon wear. With these compensation pressure plates the clutch can be reset to as-new condition - significantly extending service life.
Each unit undergoes stringent quality checks and is individually tested and measured before shipment. Preload force, installation height and release characteristics are documented. The preinstalled carbon stack thickness is also recorded - the included document supports maintenance and the shimming process (compensation pressure plates for refurbishment).
The Technology

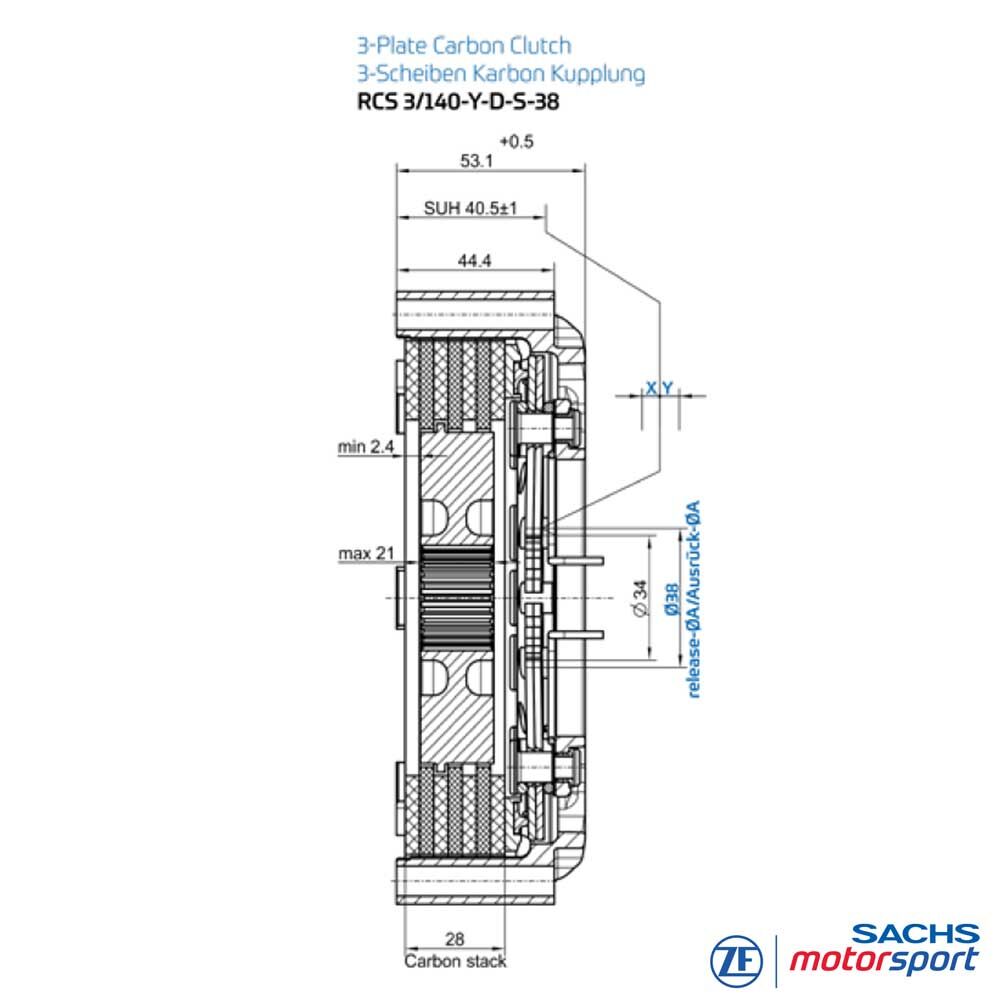

Technical Data RCC 2/140
- Maximum engine torque [Nm]: 570
- Release force [N]: 4.900
- Release travel [mm] : 4.0 +0.5
- Mass (weight) [kg]: 1.92
- Moment of inertia [kg·m²]: 0.00515
Clutch Cover (Housing)
High-strength forged aluminium, engineered for maximum stiffness at minimum weight. The housing geometry supports efficient heat dissipation and stabilises the temperature window of the clutch pack. A wear-resistant hard coating reduces friction and fit wear and increases service life.
Material: Carbon
Carbon excels in racing thanks to high temperature capability, consistent friction over a wide operating window and fine modulation even at elevated disc temperatures. Low density reduces inertia, and thermal conductivity promotes rapid temperature stabilisation. Carbon/carbon friction pairs work with low wear on mating parts - ideal for long stints and repeated starts.
Hub Profile
RCC 140 carbon racing clutches are supplied as complete assemblies precisely matched to the respective gearbox input shaft. This ensures maximum fit accuracy, reliable torque transfer and durability in demanding motorsport use. Additional spline sizes and tailored solutions for specific vehicles are available on request.
Scope of Delivery
RCS 140Y clutch cover (HA140), aluminium
2 × RCS 140Y carbon drive plates
3 × RCS 140Y carbon pressure plates
1 × RCS 140Y hub, steel
1 × RCS 140Y base plate, steel
1 × RCS 140Y pressure ring, steel
Quality Made in Germany
ZF Race Engineering has been among the technology leaders in motorsport for years. The combined know-how from top-tier racing flows directly into the development of carbon racing clutches. State-of-the-art manufacturing methods, the highest quality standards and motorsport technologies make carbon clutches the first choice for maximum performance and reliability - on circuit racing as well as in rally, formula and endurance applications.
Applications
CIRCUIT / TOURING
Super GT,
ELMS, DTM, STCC, NLS, TCR, GT World Challenge etc.
FORMULA
Formula Ford,
Formula 3, Formula 4 (RCC 115/140)
PROTOTYPES
Sports prototypes,
formula vehicle build, IndyCar etc.
RALLY
GT2 European Series,
WRC, ELMS, DRM, BRC, FRC etc.
