Up-side-down system with forceadjustment for rebound and compression
for vehicles without leveling control
Lowering from: 20 mm
Lowering to: 40 mm
Axle load front axle to: 905 kg
Axle Load RA to: 1215 kg
SACHS Performance Coilover Suspension -
Maximum Performance for Demanding Drivers.
SACHS Performance coilover suspensions upgrade tuning cars and offer passionate drivers a driving experience with a clear plus in dynamics, sportiness, and comfort.
Only high-quality monotube gas shock absorbers filled with heavy-duty oil are used for the hightech damper. Their special setup and a valve system allowing for the determination of flexible characteristic curves provide maximum sportiness even in the limit range, also for the use well away from public roads.
The required stiffness and strength are guaranteed by suspension struts, designed as upside-down components. They are able to absorb extreme lateral forces and guarantee an immediate, precise response.
The Advantages at a Glance:
- Innovative racing technology for the road
- Technology transfer from original equipment and motorsports
- Monotube gas pressure technology
- Upside-down technology from motorsports (highest stiffness)
- Rapid and precise responsiveness
- High-quality surface finishing for long-lasting corrosion resistance
- OE-tested, high-quality racing springs made from highstrength material
- Individual, rapid, and precise setting and adaptation of the damping to track, tires, and air pressure possible
- Tested and fine-tuned by renowned tuners, our service partner at the Nuerburgring, or the engineers of ZF SACHS Race Engineering
- Made in Germany including TUEV-certification
Minimum Efforts – Maximum Individuality.
- Continuously variable adjustment within the range authorized by TÜV (Germany)
- Individual lowering for every philosophy
- Chassis lowered approx. 20-50 mm (depending on the vehicle)
- Separate adjustment of front and rear axle
- Dirt-resistant height adjustment and long service life
- Trapezoidal screw thread for perfect handling

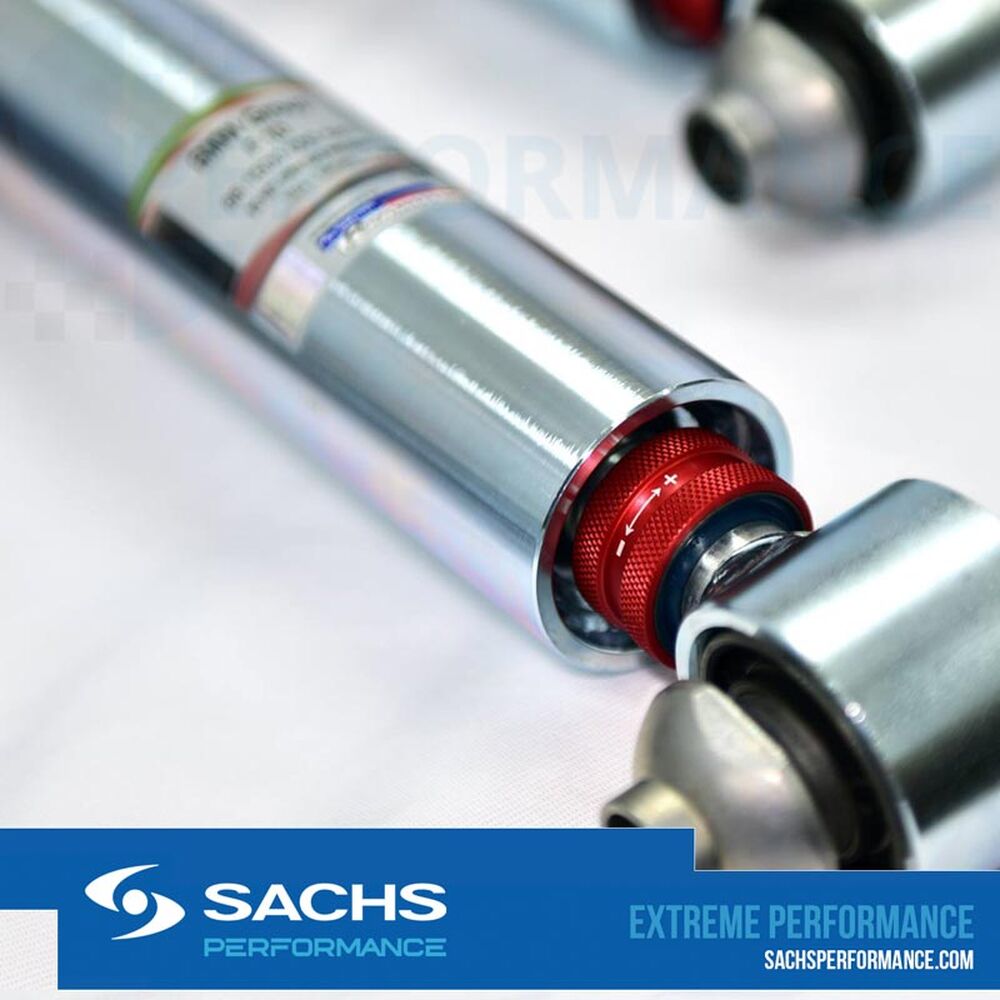

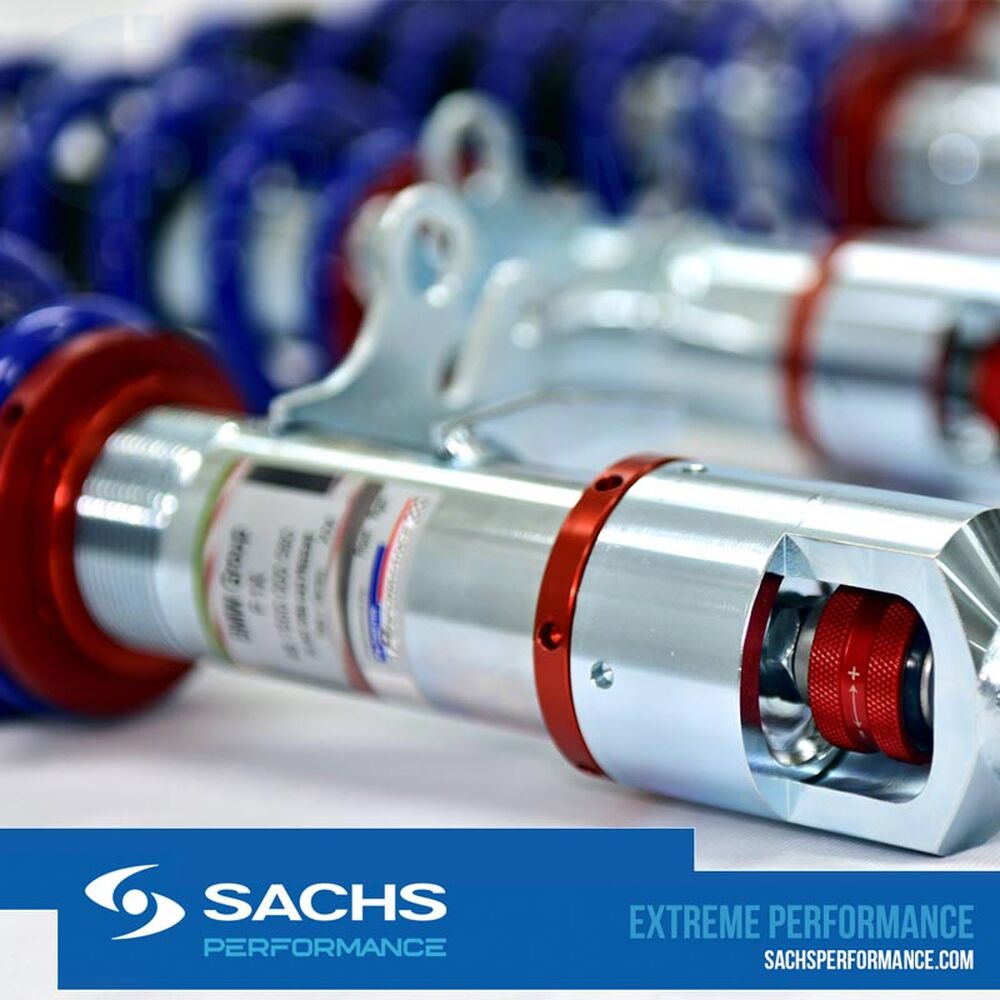

SACHS Damping Force Setting.
- Individual adjustment of rebound and compression damping
- Easy and rapid performance adjustment with precise gradation within a broad adjustment range
- Adjustable when installed
- No tools required

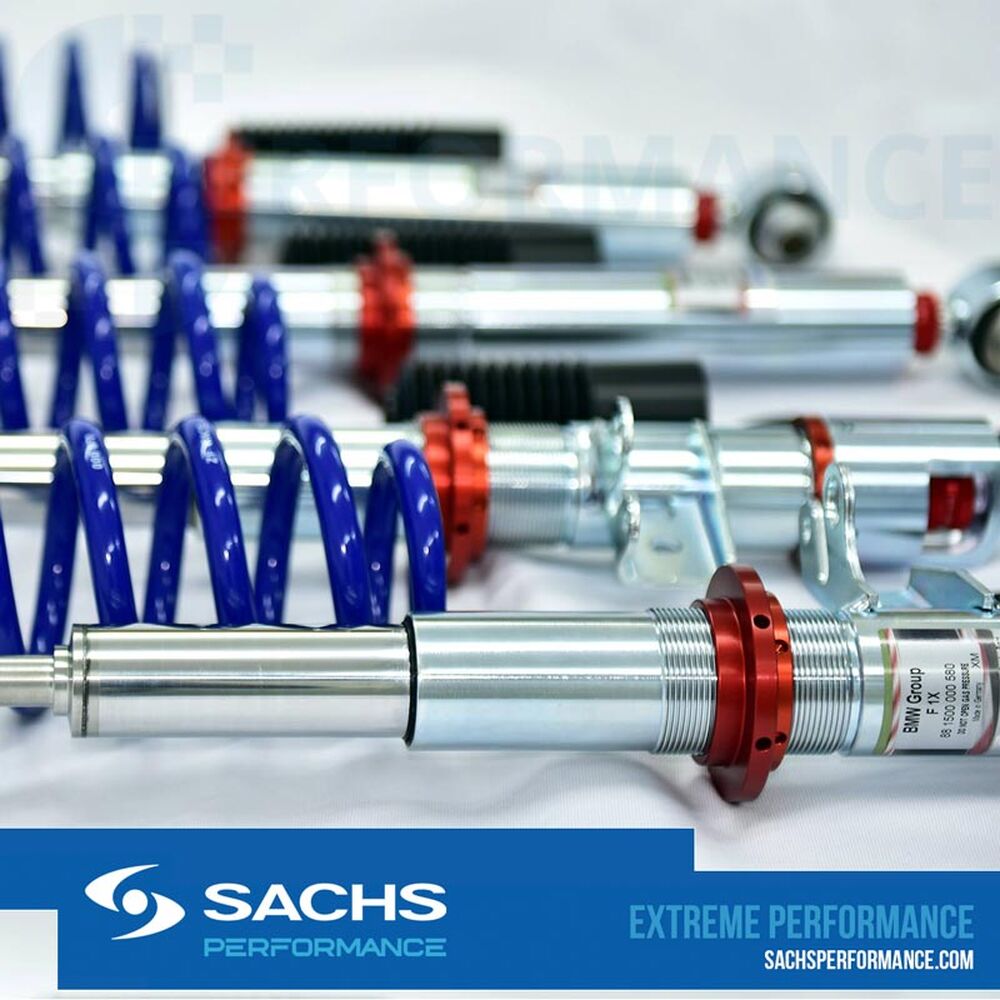

CSS Scope of delivery.
- 2 x upside-down suspension struts with height and performance adjustment
- 2 x front-axle springs
- 2 x rear-axle shock absorbers with performance adjustment
- 2 x rear-axle springs
- 2 x aluminum rear-axle height adjustment
- 1 x component certification
Tuning from Racing Professionals.
Trust in the highest level of motorsports expertise: Whether it‘s Formula One, Dakar Rally, DTM, Porsche Supercup, or VW Scirocco Cup – on the world‘s race tracks, successful racing teams cross the finish line with SACHS products.
The diverse experience gained from this commitment is directly incorporated in the development of compelling tuning products. The result: innovative racing technology for the road that inspires tuners and is available under the brand name SACHS Performance
