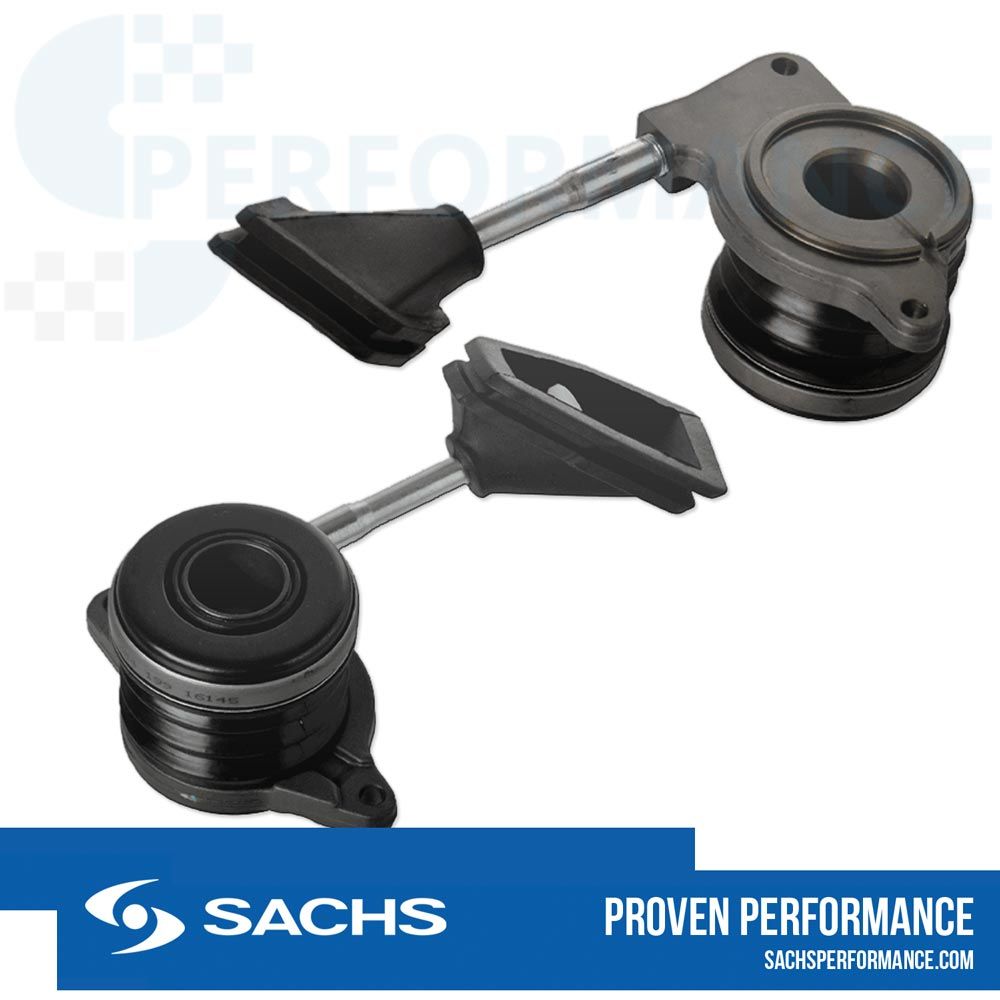

Clutch Central Slave Cylinder (CSC), ZF SACHS

Item number: 613182.654199

Replaced 613182998702

128,46 EUR

including 19% VAT., plus shipping

Recommended retail price: 151,13 EUR
(You save 15 %, that is 22,67 EUR)
Available now!

Shipping time: 1 - 2 workdays

NON-EU CUSTOMERS

With your order 19% VAT will be deducted.



Description

Manufacturer compare numbers
MITSUBISHI
MW6900012
MW8667661

RENAULT
7436 900 012
7439 181 322
7439 463 525
7700 107 570

VOLVO
31259445
6900012
8667661
9181322
9463525

Manufacturer

Manufacturer: ZF Race Engineering GmbH, Ernst-Sachs-Straße 62, 97424 Schweinfurt, Deutschland, www.zf.com

SACHS Releaser - CSC

The releaser forms the connection between the rotating clutch and the static actuating system. It is responsible for making sure the clutch functions reliably.



SACHS CSC (Concentric Slave Cylinder)

These releasers from ZF SACHS have an integrated slave cylinder. This eliminates the need for a clutch release fork between the releaser and slave cylinder as well as the associated mounting points.

The unit is mounted directly on the transmission. CSC releasers are used when the installation space is too small for a conventional clutch actuating system.

Schematic overview



Testing and Installation



Quality made in Germany.

The clutch systems from ZF SACHS have brought motor sports teams worldwide to the forefront, from mass sports to Formula one.

The knowledge gained from these race series has been flowing into the development of High Performance products for years.

Releaser CSC from SACHS - Quality made in Germany.
