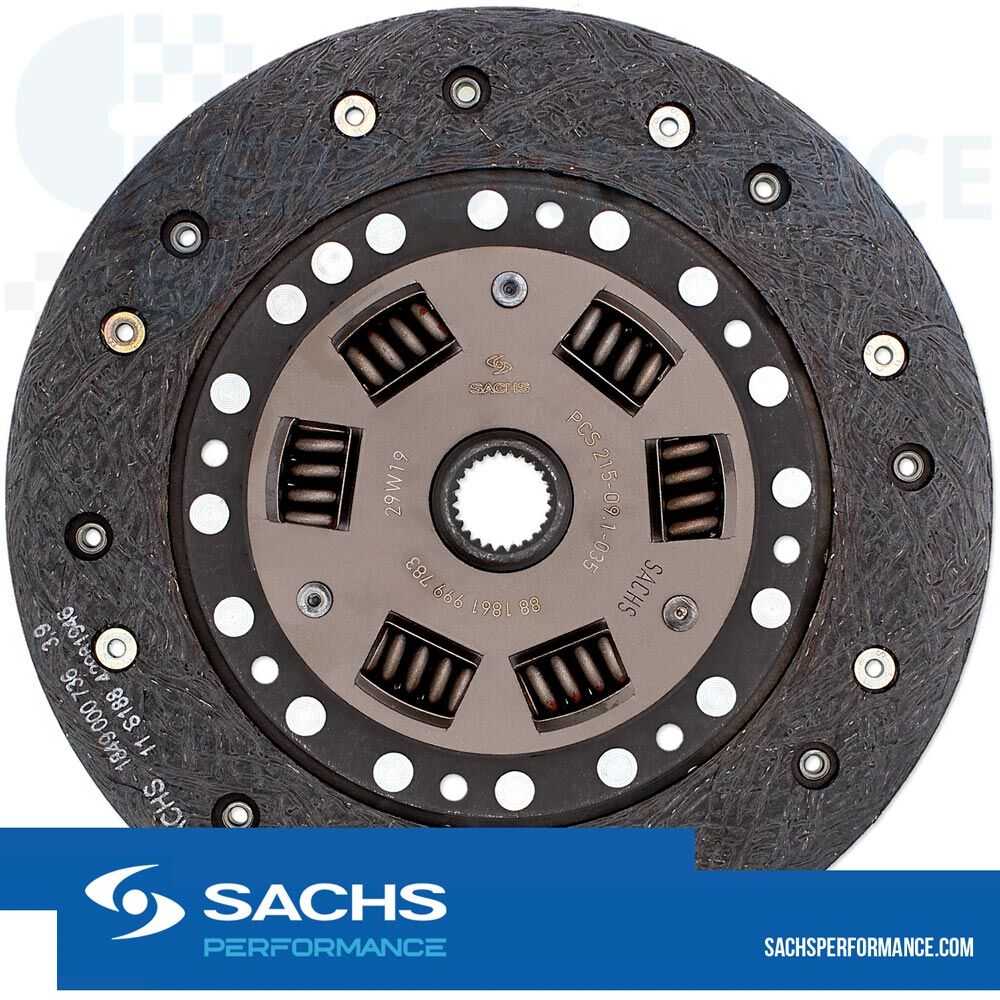

SACHS Performance Clutch Disc 881861000064

Our Service Hotline: (Mo-Fr 9.30am-5.00pm CET) +49 40 3999 2118

- Description
- Manufacturer

Diameter [mm]: 215 - Number of Teeth: 24 - Hub Profile: 18,3x20,4-24N
Transmittable torque [Nm]: 250
Clutch disc, torsion damped, with special organic clutch friction material

Manufacturer compare numbers
AUDI
025 141 031
025 141 031 A
025 141 031 B
025 141 031 C
025 141 031 H
043 141 031 C
043 141 031 D
043 141 031 E
043 141 031 F
043 141 031 G
043 141 031 H
211 141 031 L
211 141 031 M
211 141 031 N
211 141 031 O
211 141 031 P

FAUN
0890-515

PORSCHE
901 116 011 00
901 116 014 00
901 116 017 01
914 116 011 05

VOLKSWAGEN
025 141 031
025 141 031 A
025 141 031 B
025 141 031 C
025 141 031 H
043 141 031 C
043 141 031 D
043 141 031 E
043 141 031 F
043 141 031 G
043 141 031 H
043 141 031 L
211 141 031 L
211 141 031 M
211 141 031 N
211 141 031 O
211 141 031 P

Manufacturer: ZF Race Engineering GmbH, Ernst-Sachs-Straße 62, 97424 Schweinfurt, Deutschland, www.zf.com

SACHS Performance Kupplungsscheibe 881861

Innovative Engineering.

Higher transmittable torque
Higher thermal resistance
Higher burst number of revolutions
Longer life span
The torque damper has a higher stop position
Start Performance similar to OE
Effortless exchange with OE clutch disc

SACHS Clutch Disc - Function and Structure

Technical Details.

Clutch discs with torsion springs function as a vibration damper between engine and gearbox.

SACHS Performance clutch discs with organic friction material have a superior thermal resistance, are more resistant against rpm's as OE discs and are able to transmit higher torque. That makes it extremely useful for all kind of street tuning and for vehicles that are often driven with their maximum gross vehicle weight.

Installed together with the SACHS Performance clutch cover, you´ll experience the perfect combination between suitability for daily use and great drive experience.

Quality - Made in Germany.

The clutch systems from ZF SACHS Race Engineering have brought motor sports teams worldwide to the forefront, from mass sports to Formula 1.

The knowledge gained from these race series has been flowing into the development of High Performance products for years.

The SACHS Performance clutches are assembled by hand. This guarantees at all times the highest quality attributes in clamping load and release characteristics.

Typically applications include:

Chip-Tuning, turbocharger and supercharger modifications
Vehicles with maximum gross vehicle weight and according to high load (towing trailers, campers)
1/4 mile-race
Race circuit (endurance race, clubsport, autocross)
Rally (e.g. group N)
Slalom, Drift Racing

SACHS Performance Clutch in the Porsche-Motorsport

Official Partner of Porsche Motorsport and Porsche Motorsport's trainee programme. All international Cup vehicles use ZF dampers and clutches.

SACHS supplies the racing clutches for the Porsche Supercup cars

Porsche Mobil 1 Supercup

The brand trophy has been held at the Formula 1 events since 1993. All drivers start in the current Porsche 911 GT3 Cup, based on the street-legal lightweight 911 GT3 RS. ZF SACHS supplies the racing clutches and dampers for the 460-hp racing car.

Porsche Carrera Cup

Porsche equips the attractive brand trophy series, which starts at the DTM race weekends, with a total of 540,000 euros in prize money for teams and drivers. The pilots start in the same Porsche 911 GT3 Cup. The 460-hp GT cars are equipped with gas-filled dampers and racing clutches from SACHS.
